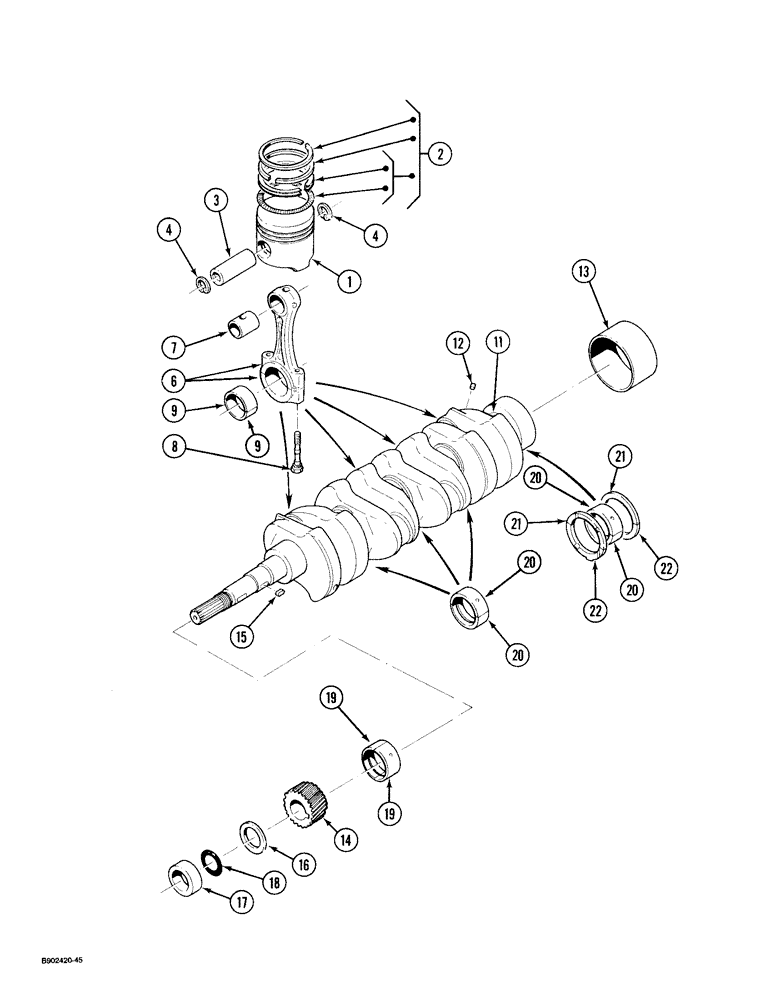

Запчасти Case 1825 (2-24) - PISTONS AND CRANKSHAFT, DIESEL MODELS (02) - ENGINE

1

1959345C1

PISTON

- standard

4шт.

2

1959346C1

RING, SET

SET - ring, piston

4шт.

3

1959347C1

PISTON PIN

PIN - piston

4шт.

4

1959348C1

CIRCLIP

RING - snap, piston pin

8шт.

1959349C2

ROD, CONNECTING

ROD ASSEMBLY - connecting, was 1959349C1, Includes: Ref. 6 - 9

4шт.

6

NSS

NOT SOLD SEPARAT

ROD - connecting, order connecting rod assembly 1959349C2

4шт.

7

1959351C1

BUSHING

- connecting rod

4шт.

ref# 7 - small end bushing comes without hole. Hole must be drilled after installation using a 4. mm diameter (.157 in. diameter) drill. BE SURE TO CHAMPFER THE OIL HOLE CIRCUMFERENCE WITH AN OIL STONE.

1шт.

8

1959352C1

BOLT

- connecting rod, 7 x 42 mm

8шт.

9

1959353C1

BEARING

- crank pin

8шт.

1959358C1

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

12

1959356C1

PLUG

- pin

1шт.

13

1959357C1

SLEEVE

- crankshaft

1шт.

14

1959360C1

GEAR

- crankshaft

1шт.

15

1959306C1

KEY

- feather

1шт.

16

1959361C1

WASHER

DISC - crankshaft

1шт.

17

1959362C1

COLLAR

- crankshaft

1шт.

18

1959363C1

O-RING

- crankshaft

1шт.

19

1959364C1

CRANKSHAFT BEARING,48 mm ID x 18 mm

BEARING - main crankshaft 1

1шт.

Ref #19 - (1 pc. Bushing) 05/29/96

1шт.

20

1959365C1

CRANKSHAFT BEARING

BEARING - main crankshaft 2

8шт.

21

1959366C1

THRUST PLATE

PLATE - bearing thrust side 1

2шт.

22

1959367C1

BLOCK

PLATE - bearing thrust side 2

2шт.
