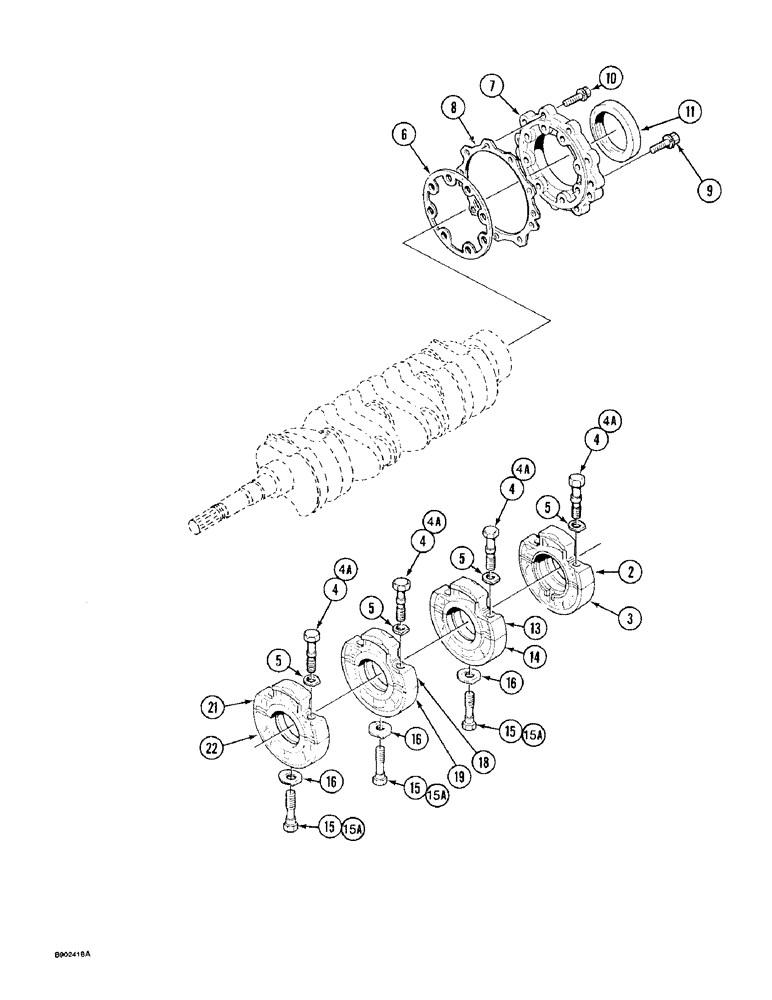

Запчасти Case 1825 (2-20) - MAIN BEARING HOUSING, DIESEL MODELS (02) - ENGINE

1959207C1

HOUSING

ASSEMBLY - bearing, No. 1 cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959207C1

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959207C1

1шт.

4

1959210C1

BOLT

- bearing housing, 7 x 53 mm

8шт.

Used before engine S/N 771651.

1шт.

4a

110941A1

BOLT

- bearing housing

8шт.

Used with engine S/N 771651 and after.

1шт.

5

1959211C1

WASHER

- bearing housing, 6 mm ID

8шт.

Used before engine S/N 771651.

1шт.

6

1981627C1

GASKET

- bearing housing

1шт.

7

1959213C1

COVER

- bearing housing

1шт.

8

1981628C1

GASKET

- bearing housing cover

1шт.

9

1959215C1

BOLT

- bearing housing cover, inner

9шт.

10

1959216C1

BOLT

- bearing housing cover, outer

8шт.

11

1959217C1

OIL SEAL

- oil

1шт.

1959218C1

HOUSING

ASSEMBLY - main bearing, No. 2 cylinder, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959218C1

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959218C1

1шт.

15

1959221C1

BOLT

- bearing housing, 8 x 44 mm

3шт.

Used before engine S/N 771651.

1шт.

15a

110942A1

BOLT

- bearing housing

3шт.

Used with engine S/N 771651 and after.

1шт.

16

1959222C1

WASHER

- bearing housing, 9 mm ID

3шт.

Used before engine S/N 771651.

1шт.

1959223C1

HOUSING

ASSEMBLY - main bearing, No. 3 cylinder, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING- half, order housing assembly 1959223C1

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959223C1

1шт.

1959226C1

CAP

HOUSING ASSEMBLY - main bearing No. 4 cylinder, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959226C1

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - half, order housing assembly 1959226C1

1шт.
