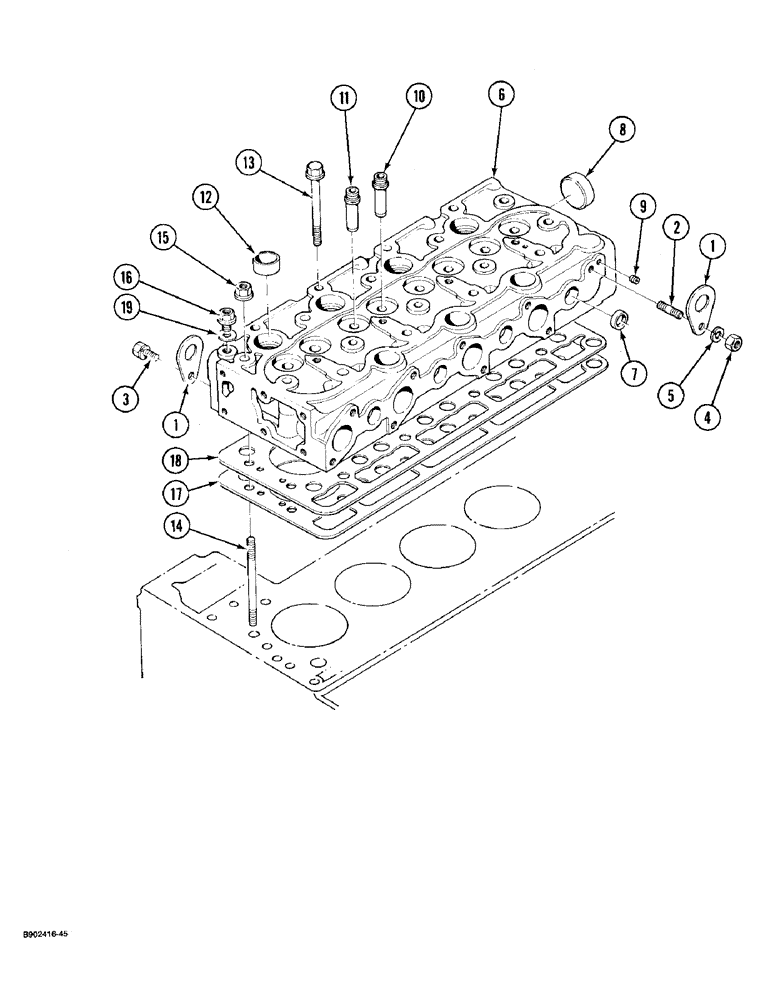

Запчасти Case 1825 (2-16) - CYLINDER HEAD, DIESEL MODELS (02) - ENGINE

1

1959151C1

HOOK

EYE - lift

2шт.

2

1959169C1

STUD

- lift eye

1шт.

3

1959163C1

BOLT

- lift eye

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Lift Eye

1шт.

5

1959171C1

SPRING WASHER

- lock

1шт.

6

1959175C1

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 7 - 12

1шт.

7

1959154C1

PLUG

CAP - sealing

7шт.

8

1959124C1

PLUG

CAP - sealing

1шт.

9

1959126C1

PLUG

- hex socket, 8 x 7 mm, tapered

2шт.

10

1959172C1

GUIDE

- inlet valve

4шт.

11

1959173C1

GUIDE

- exhaust valve

4шт.

12

1959174C1

CHAMBER

- pre-combustion

4шт.

13

1959177C1

BOLT

- cylinder head, 9 x 78 mm

18шт.

14

1959178C1

STUD

- cylinder head, 9 x 96 mm

1шт.

15

1959179C1

NUT

- cylinder head, 9 mm

1шт.

16

1959180C1

PLUG

- cylinder head, 16 mm

1шт.

17

1981624C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

18

1959184C1

SHIM

- cylinder head gasket

1шт.

19

1959185C1

SEALING WASHER

- seal

1шт.
