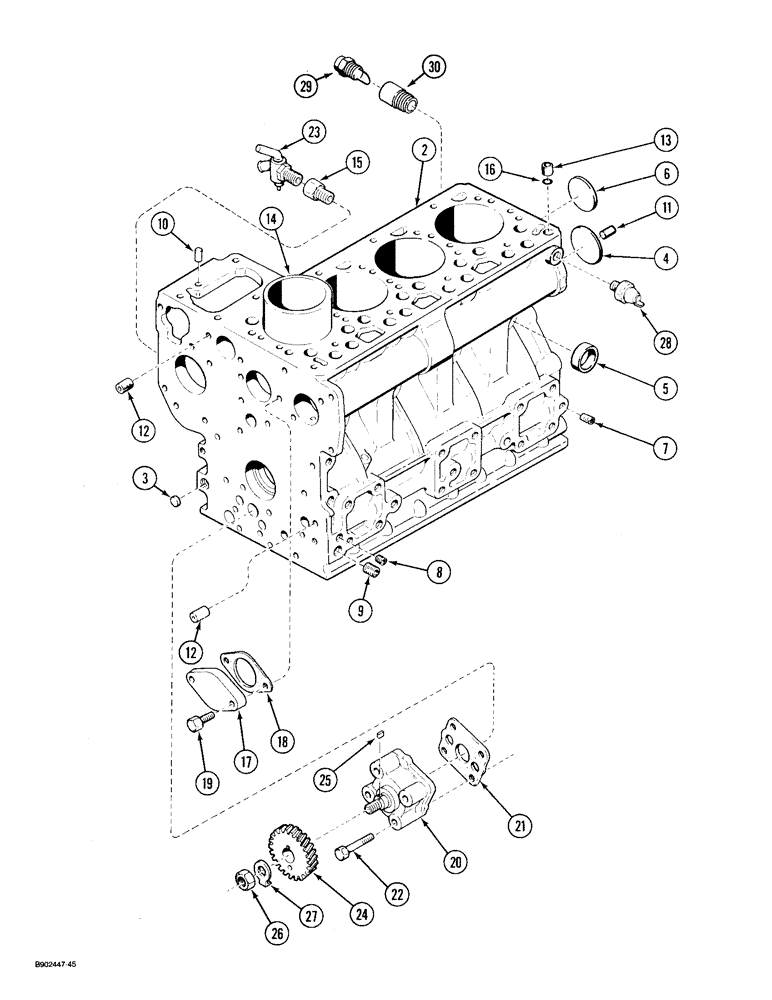

Запчасти Case 1825 (2-12) - CYLINDER BLOCK (CRANKCASE) ASSEMBLY, DIESEL MODELS (02) - ENGINE

1959140C1

CRANKCASE

BLOCK ASSEMBLY - cylinder, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - order block assembly 1959140C1

1шт.

3

1959122C1

PLUG

- expansion

3шт.

4

1959123C1

PLUG

- expansion

1шт.

5

1959124C1

PLUG

CAP - sealing

6шт.

6

1959125C1

PLUG

CAP - sealing

1шт.

7

1959126C1

PLUG

- socket

7шт.

8

1959127C1

PLUG

- socket

3шт.

9

1959128C1

PLUG

- socket

1шт.

10

1959129C1

PIN

- straight

2шт.

11

1959130C1

PIN

- straight

2шт.

12

1959131C1

PIN

- pipe

2шт.

13

1959132C1

PIN

- pipe

1шт.

14

1959133C1

SLEEVE CYLINDER

LINER - cylinder

4шт.

15

1959134C1

PLUG

ADAPTER - drain valve

1шт.

16

1959135C1

O-RING,6.57mm ID x 2.325mm Width

- pin

1шт.

17

1959136C1

PLATE

COVER - water

1шт.

18

1981620C1

GASKET

- water cover (replaces 1959137C1)

1шт.

19

1959155C1

BOLT

BOLT - water cover

2шт.

20

1959138C1

PUMP

- oil

1шт.

21

1981621C1

GASKET

- oil pump (replaces 1959139C1)

1шт.

22

1959142C1

BOLT

- oil pump, 6 x 47 mm

4шт.

23

1959143C1

COCK

VALVE - drain

1шт.

24

1959144C1

GEAR

- oil pump drive

1шт.

25

1959156C1

KEY

- feather

1шт.

26

1959157C1

NUT

- oil pump gear

1шт.

27

1959158C1

WASHER

- special, locking

1шт.

28

1959159C1

PRESSURE SWITCH

SWITCH - oil pressure

1шт.

29

87485528

WIRE HARNESS

Block Heater, 110 Volt, 400 Watt; Incl Power Cord; Replaces 1959636C1

1шт.

30

221-604

REDUCER,Hex, 1" x 3/4" NPT

- pipe, 1 male x 3/4 inch PT

1шт.

1959656C1

ENGINE ASSEMBLY

ENGINE - complete, diesel

1шт.
