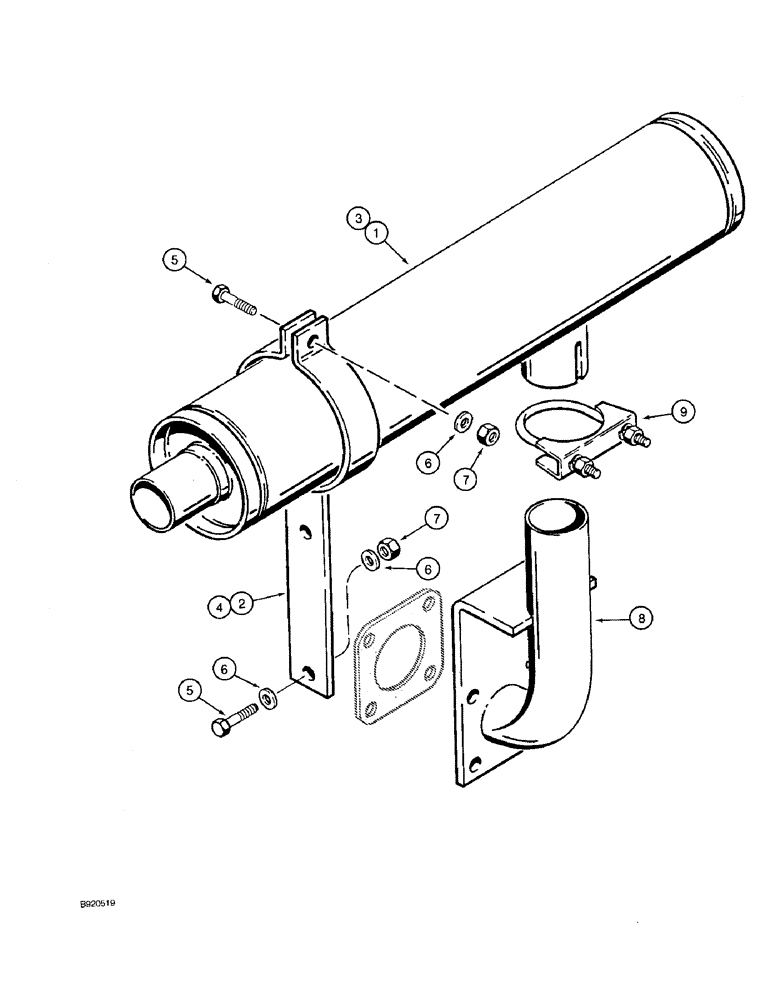

Запчасти Case 1825 (2-09A) - MUFFLER & EXHAUST PIPE, EUROPEAN MODELS (02) - ENGINE

1

A184808

MUFFLER

- exhaust

1шт.

2

D139178

CLAMP

SUPPORT - standard muffler, use with A184808 muffler

1шт.

3

A184704

MUFFLER

- exhaust, spark arrester (if equipped)

1шт.

4

H674408

ANCHOR

SUPPORT - muffler, use with A184704 muffler

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

6

H426775

WASHER

- flat, hardened

3шт.

7

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

8

D135119

PIPE

- exhaust

1шт.

9

D61412

CLAMP

- exhaust pipe, includes hardware

1шт.
