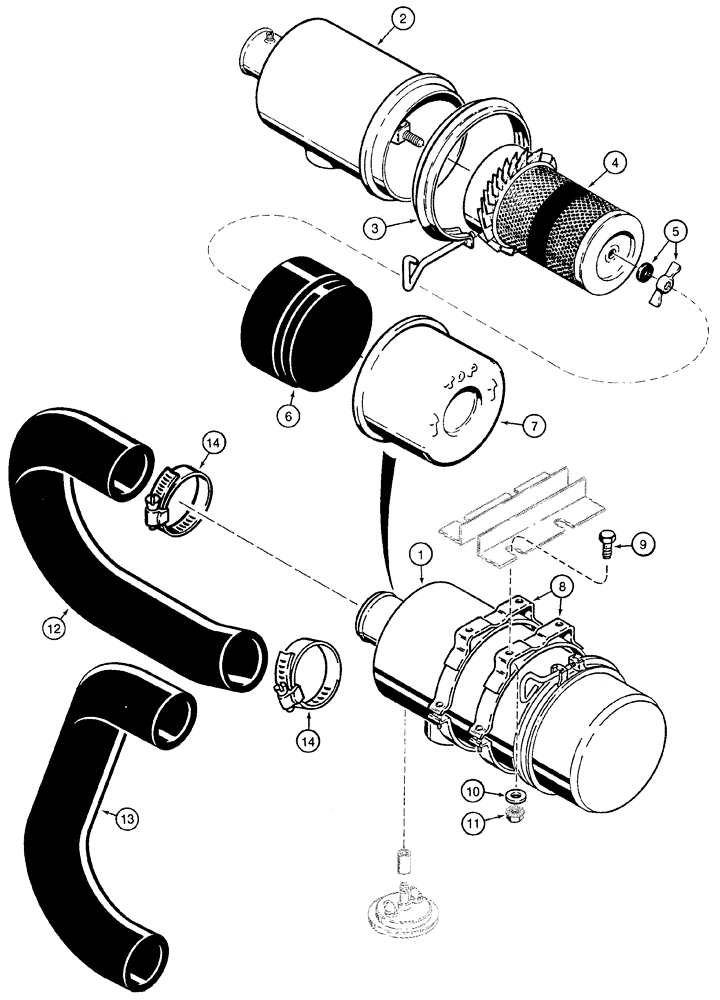

Запчасти Case 1825 (2-06) - AIR CLEANER AND MOUNTING PARTS (02) - ENGINE

1

D82572

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

D86613

CLAMP

ASSEMBLY - cup retaining, includes hardware

1шт.

4

D82571

FILTER, ELEMENT

ELEMENT - filter

1шт.

5

D86612

NUT

NUT - wing, with washer, element retaining

1шт.

6

D86615

BAFFLE

- air cleaner

1шт.

7

73269C1

CUP

- air cleaner

1шт.

8

D27245

COLLAR CLAMP

BAND - air cleaner mounting, includes hardware

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

H426775

WASHER

- flat, special, hardened

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

D137047

INTAKE AIR HOSE,44.50 mm ID x 188.00 mm, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on gasoline models only 44.50 mm ID x 188.00 mm, SAE 20R4 Class D2

1шт.

13

D135088

INTAKE AIR HOSE,44.75 mm ID, SAE 20R4 Class D2

- Rubber, Air Cleaner Outlet, Used on diesel models 44.75 mm ID, SAE 20R4 Class D2

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.
