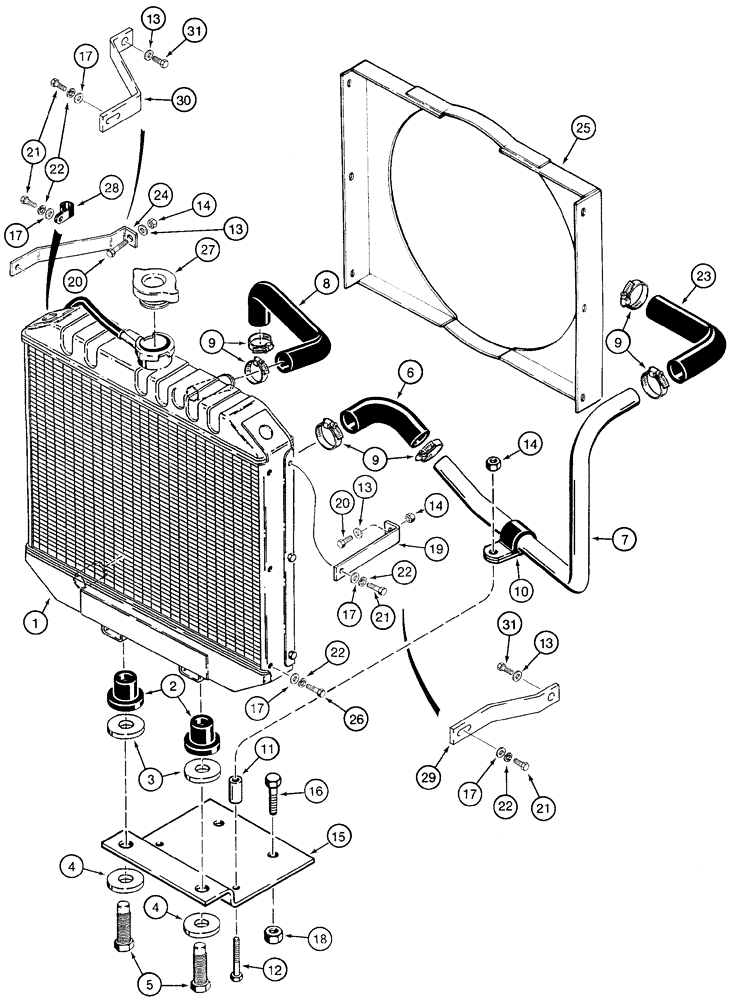

Запчасти Case 1825 (2-05A) - RADIATOR & MOUNTING PARTS, GASOLINE MODELS, P.I.N. JAF0096438 AND AFTER (02) - ENGINE

1

109612A1

RADIATOR

- engine cooling

1шт.

2

D75755

ISOLATOR

INSULATOR - rubber

2шт.

3

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

6

D136886

TUBE

HOSE - formed, 90 degree bend, 26.5 mm ID, radiator. lower

1шт.

7

D136887

HOSE

TUBE - radiator, lower, 25.4 mm OD

1шт.

8

110979A1

RADIATOR HOSE,26.50 mm ID x 252.00 mm

Formed, Two Bends, Upper 26.50 mm ID x 252.00 mm

1шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

10

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type 1", Insul, 5/16" Bolt

1шт.

11

D123485

SPACER

- steel tubing, 10.3 ID x 15.88 mm x 32 mm long

1шт.

12

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

13

H426775

WASHER

- flat, special, hardened

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

15

110637A1

BRACKET

- radiator mounting

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

17

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

6шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

19

110566A1

SUPPORT

- radiator, right-hand, Serial Range: -JAF014357

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

21

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

ref #21 (P/N 614-6016) was replaced by 614-6010 bolt - M6 X 10 class 8.8 znd effective 2/95 to shorten radiator mounting bolts to eliminate rubbing on radiator.

1шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Formed, 90 Degree Bend, From Lower Radiator Port, at Engine

1шт.

24

110553A1

SUPPORT

- radiator, left-hand, Serial Range: -JAF014357

1шт.

25

110370A1

DEFLECTOR

SHROUD - fan

1шт.

26

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

27

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

28

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Closed 1/2", Insul, 5/16" Bolt

1шт.

29

175309A1

SUPPORT

- radiator, right-hand, Start Serial: JAF014357

1шт.

30

175308A1

SUPPORT

- radiator, left-hand, Start Serial: JAF014357

1шт.

31

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.
