(2-03C) - RADIATOR & MOUNTING PARTS, DIESEL MODELS, P.I.N. JAF0096438 & AFTER

Запчасти Case 1825 (2-03C) - RADIATOR & MOUNTING PARTS, DIESEL MODELS, P.I.N. JAF0096438 & AFTER (02) - ENGINE

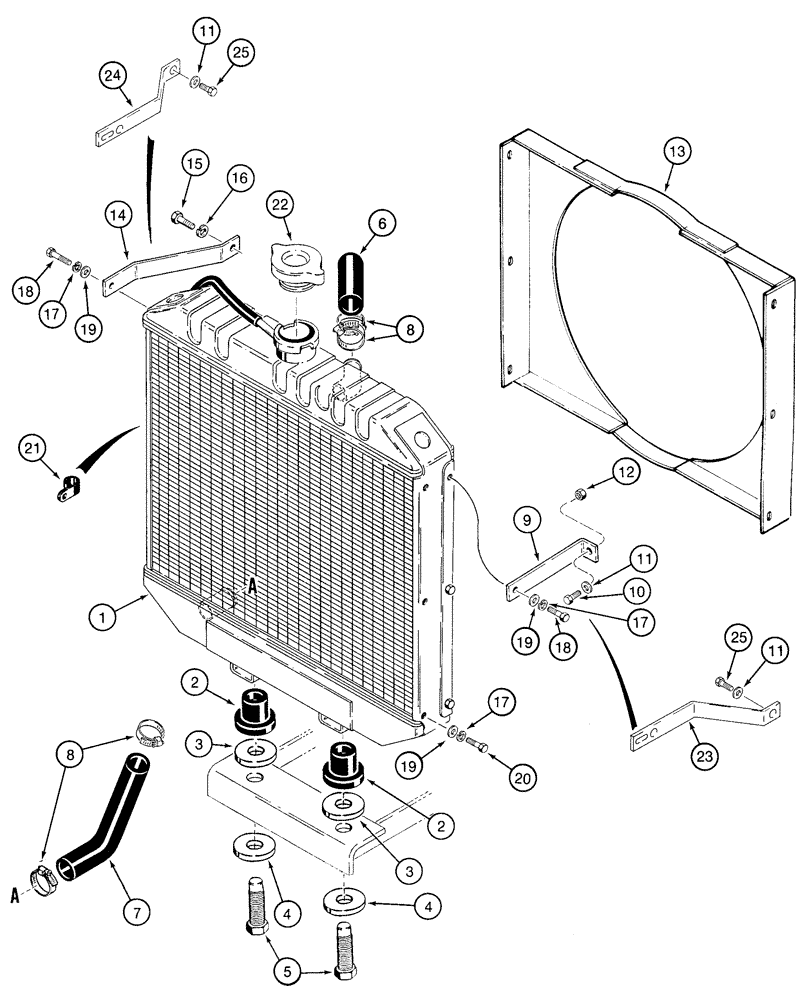

Схема запчастей Case 1825 - (2-03C) - RADIATOR & MOUNTING PARTS, DIESEL MODELS, P.I.N. JAF0096438 & AFTER (02) - ENGINE
13
19
19
4
3
8
19
21
24
2
7
10
17
23
16
5
2
25
18
8
9
14
3
17
15
11
18
12
4
22
20
17
11
1
6
25
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

109612A2

RADIATOR

- engine cooling

1шт.

2

D75755

ISOLATOR

INSULATOR - rubber

2шт.

3

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

6

110804A1

RADIATOR HOSE,25.00 mm ID x 177.50 mm

Formed, 90 Degree Bend, Upper 25.00 mm ID x 177.50 mm

1шт.

7

A173839

PIPE

HOSE - formed, 90 degree bend, 25 mm ID, radiator, lower

1шт.

8

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

4шт.

9

108657A1

SUPPORT

- radiator, right-hand, Serial Range: -JAF014357

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

11

H426775

WASHER

- flat, special, hardened

1-2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

13

109613A1

DEFLECTOR

SHROUD - fan

1шт.

14

110492A1

SUPPORT

- radiator, left-hand, Serial Range: -JAF014357

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 16 mm

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

19

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

6шт.

20

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

ref. #20 (P/N 614-6016) was replaced by 614-6010 bolt - M6 X 10 - class 8.8 znd effective 2/95 to shorten radiator mounting bolts to eliminate rubbing on radiator.

1шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Closed 1/2", Insul, 5/16" Bolt

1шт.

22

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

23

176465A2

SUPPORT

- radiator, right-hand, Start Serial: JAF014357

1шт.

24

175310A2

SUPPORT

- radiator, left-hand, Start Serial: JAF014357

1шт.

25

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.
