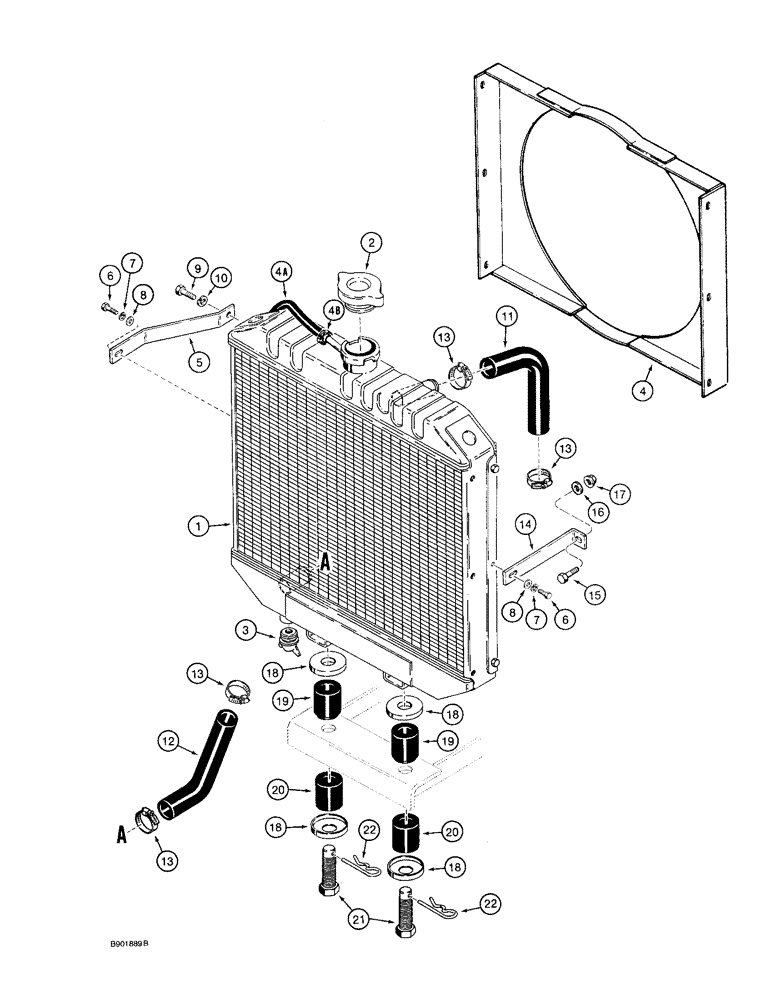

Запчасти Case 1825 (2-03A) - RADIATOR & MOUNTING PARTS, EUROPEAN DIESEL MODELS, BEFORE P.I.N. JAF0096438 (02) - ENGINE

1

A173836

RADIATOR

ASSEMBLY - engine cooling, Includes: Ref. 2 - 4A

1шт.

Part of radiator kit P/N H674538.

1шт.

2

A184964

FILLER CAP

CAP - radiator

1шт.

3

A184965

COCK, DRAIN

VALVE - drain

1шт.

4

109327A1

SHROUD

- fan

1шт.

4a

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

4b

163135H1

CLAMP,7/16", 3/8" Bolt

- adj, 7/16 inch dia, radiator overflow

1шт.

5

108659A1

SUPPORT

- radiator, left-hand

1шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

9

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8-1.25 x 16 mm

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Formed, 90 Degree Bend, Upper Radiator Port

1шт.

Part of radiator kit P/N H674538.

1шт.

12

A173839

PIPE

HOSE - formed, 90 degree bend, 25 mm ID, lower radiator port

1шт.

Part of radiator kit P/N H674538.

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

4шт.

14

108657A1

SUPPORT

- radiator, right-hand

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

16

H426775

WASHER

- flat, special, hardened

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

18

1959244C1

CUP WASHER

- special

4шт.

Part of radiator kit P/N H674538.

1шт.

19

1959242C1

HITCH DAMPER

INSULATOR - rubber, upper

2шт.

Part of radiator kit P/N H674538.

1шт.

20

1959243C1

HITCH DAMPER

INSULATOR - rubber, lower

2шт.

Part of radiator kit P/N H674538.

1шт.

21

1959241C1

BOLT

- hex, 10-1.25 x 60 mm

2шт.

Part of radiator kit P/N H674538.

1шт.

22

1959245C1

LINCH PIN

PIN - hair, bolt

2шт.

Part of radiator kit P/N H674538.

1шт.

S120317X

HOSE

5/16 (8) ID x 300 inch (7620 mm) long

1шт.

H674538

SET

KIT - radiator, Includes: Ref. 1, 11, 12, 18, 19, 20, 21 and 22

1шт.
