Запчасти Case 1825 (9-66) - DECALS - DANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

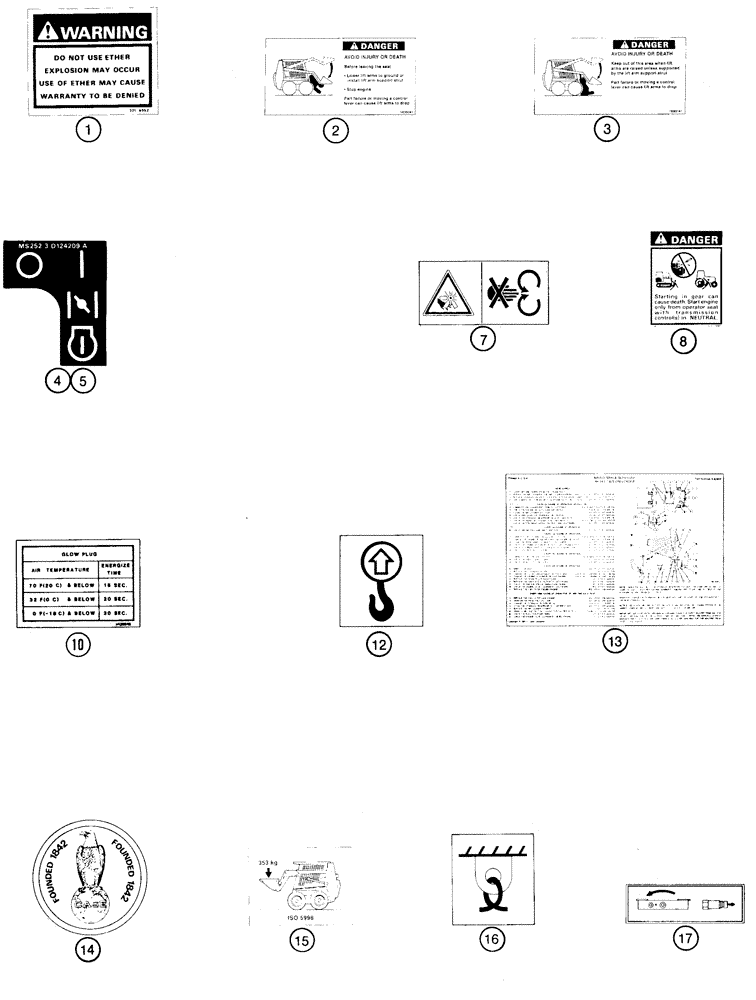

Схема запчастей Case 1825 - (9-66) - DECALS - DANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
8
10
12
1
7
17
16
13
2
5
14
4
15
3

Артикул

Название

Примечание

Количество

1

175617A1

DECAL

- Warning, do not use ether (Danish), diesel models

1шт.

2

175484A1

DECAL

- Danger, before leaving the seat (Danish)

1шт.

3

175488A1

DECAL

- Danger, keep out of this area (Danish)

1шт.

4

D124209

DECAL

- ignition switch pattern, graphic, brown

1шт.

5

178664A1

DECAL

- ignition switch pattern, graphic, gray

1шт.

7

175504A1

DECAL

- Warning, rotating fan, graphic

1шт.

8

175509A1

WARNING DECAL

- jump start, graphic

1шт.

10

184853A1

DECAL

- glow plug, diesel models only (Danish), gray

1шт.

12

139729A1

DECAL

- lift only, graphic, use with lift brackets

4шт.

13

175522A1

DECAL - maintenance schedule, (Danish)

1шт.

14

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

15

139948A1

DECAL

- operating capacity

1шт.

16

139728A1

DECAL

- tie down

4шт.

17

140026A1

DECAL

- auxiliary hydraulics, if used

1шт.

18

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long, not shown

4шт.

Выбрано товаров: 15
