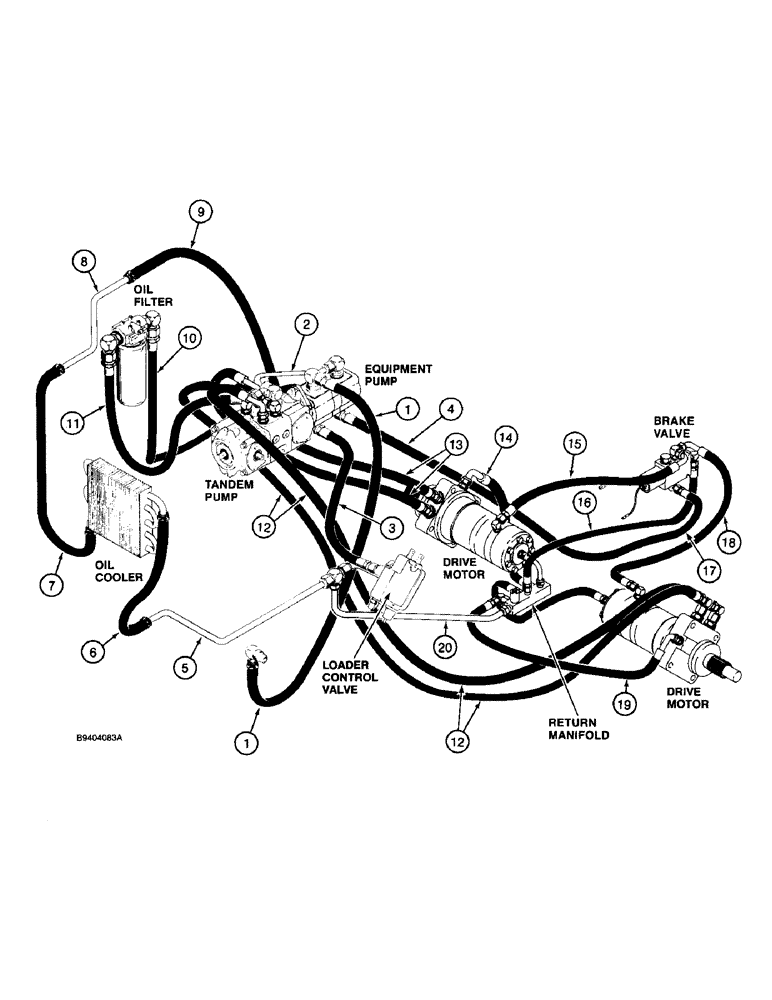

Запчасти Case 1825 (1-16) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS EUROPEAN MODELS, P.I.N. JAF0140357 & AFTER (00) - PICTORIAL INDEX

1

Hose at Hydraulic Tank to Front port of Equipment Pump, Pages 8-13, 8-15

1шт.

2

Tube from Equipment Pump to Tandem Pump, Page 8-11

1шт.

3

Hose from Front Port of Equipment Pump to Loader Control Valve, Page 8-11

1шт.

4

Hose from Rear Port of Equipment Pump to Brake Valve, Page 8-11

1шт.

5

Tube from Loader Control Valve to Oil Cooler, Pages 8-13, 8-15

1шт.

6

Hose from Loader Control Valve to Oil Cooler, Pages 8-13, 8-15

1шт.

7

Hose from Oil Cooler to Equipment Pump, Pages 8-13, 8-15

1шт.

8

Tube from Oil Cooler to Equipment Pump, Pages 8-13, 8-15

1шт.

9

Hose from Oil Cooler to Equipment Pump, Pages 8-13, 8-15

1шт.

10

Hose from Oil Filter to Tandem Pump, Page 8-3

1шт.

11

Hose from Oil Filter to Tandem Pump, Page 8-3

1шт.

12

Hose from Drive Motors to Tandem Pump, Page 6-17

1шт.

13

Hose from Drive Motors to Tandem Pump, Page 6-17

1шт.

14

Hose from left-hand Drive Motor to Return Manifold, Page 6-17

1шт.

15

Hose from left-hand Drive Motor to Brake Valve, Page 6-17

1шт.

16

Hose from Brake Valve to Return Manifold, Page 6-17

1шт.

17

Hose from Equipment Pump to Brake Valve, Page 6-17

1шт.

18

Hose from right-hand Drive Motor to Brake Valve, Page 6-17

1шт.

19

Hose from right-hand Drive Motor to Return Manifold, Page 6-17

1шт.
