Запчасти Case 1825 (9-52) - DECALS - SPANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

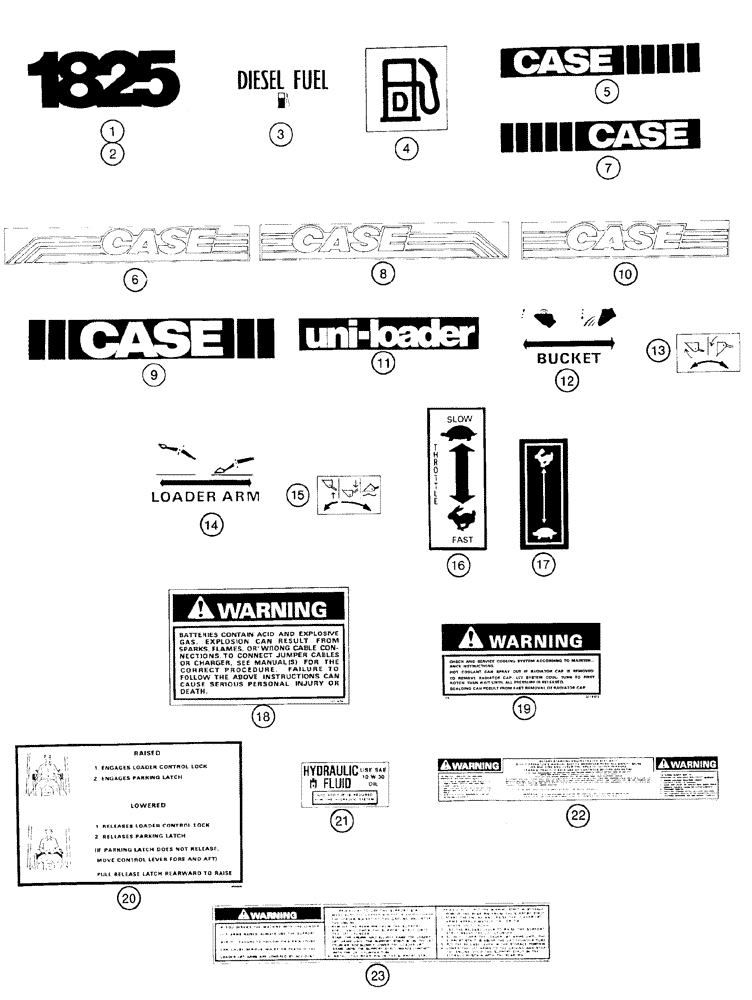

Схема запчастей Case 1825 - (9-52) - DECALS - SPANISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
12
4
9
2
3
11
18
16
8
21
14
6
17
15
13
20
23
19
7
22
1
10
5

Артикул

Название

Примечание

Количество

1

D139184

DECAL

- 1825, brown models

2шт.

2

179123A1

DECAL

- 1825, gray models

2шт.

3

E84619

DECAL

- diesel fuel (Spanish)

1шт.

4

139879A1

DECAL

- diesel fuel, graphic

1шт.

5

D138195

DECAL

- Case, with treads, left-hand side, 5 inch (127 mm) high, brown models

1шт.

6

179180A2

DECAL

- Case, with stripes, left-hand side, 5 inch (127 mm) high, gray models

1шт.

7

D138196

DECAL

- Case, with treads, right-hand side, 5 inch (127 mm) high, brown models

1шт.

8

179181A2

DECAL

- Case, with stripes, right-hand side, 5 inch (127 mm) high, gray models

1шт.

9

D124236

DECAL

- Case, with treads, 4 inch (102 mm) high, rear door, brown models

1шт.

10

179177A2

DECAL

- Case, with stripes, 4 inch (102 mm) high, gray models

1шт.

11

D123964

DECAL

- uni-loader, brown

2шт.

12

321-5850

DECAL

- bucket control, if used

1шт.

13

139593A1

DECAL

- bucket control, graphic

1шт.

14

321-5849

DECAL

- loader arm control, if used

1шт.

15

139592A1

DECAL

- loader arm control, graphic

1шт.

16

321-5847

DECAL

- throttle, slow-fast, graphic, black turtle symbol up on white background, if used

1шт.

17

178662A1

DECAL

- throttle, slow-fast, graphic, white rabbit symbol up on black backgound, if used

1шт.

18

321-6722

DECAL

- Warning, batteries contain acid and explosive gas (Spanish)

1шт.

19

321-6793

DECAL

- Warning, check and service cooling system (Spanish)

1шт.

20

D136746

DECAL

- raised/lowered, parking latch and operators restraint instructions (Spanish), used on models with dual seat bars

1шт.

21

175512A1

DECAL

- hydraulic fluid, use SAE 15W/40 oil (Spanish), HTO additive is required

1шт.

22

321-6622

DECAL

- Warning, before starting engine, fasten seat belt (Spanish)

1шт.

23

321-6797

DECAL

- Warning, if you service the machine with loader lift arms raised (Spanish)

1шт.

Выбрано товаров: 23
