Запчасти Case 1825 (9-48) - DECALS - ITALIAN, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

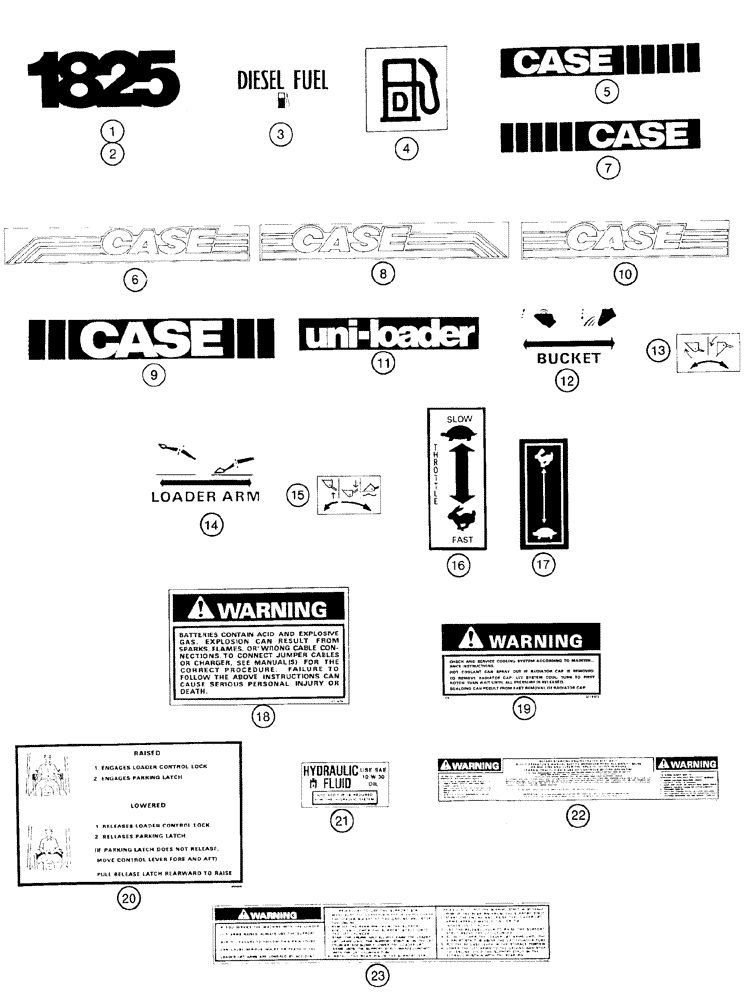

Схема запчастей Case 1825 - (9-48) - DECALS - ITALIAN, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
20
21
15
18
7
19
2
14
1
11
22
13
9
23
4
6
5
3
12
8
16
10
17

Артикул

Название

Примечание

Количество

1

D139184

DECAL

- 1825, brown models

2шт.

2

179123A1

DECAL

- 1825, gray models

2шт.

3

E21030

DECAL

- diesel fuel (Italian)

1шт.

4

139879A1

DECAL

- diesel fuel, graphic

1шт.

5

D138195

DECAL

- Case, with treads, left-hand side, 5 inch (127 mm) high, brown models

1шт.

6

179180A2

DECAL

- Case, with stripes, left-hand side, 5 inch (127 mm) high, gray models

1шт.

7

D138196

DECAL

- Case, with treads, right-hand side, 5 inch (127 mm) high, brown models

1шт.

8

179181A2

DECAL

- Case, with stripes, right-hand side, 5 inch (127 mm) high, gray models

1шт.

9

D124236

DECAL

- Case, with treads, 4 inch (102 mm) high, rear door, brown models

1шт.

10

179177A2

DECAL

- Case, with stripes, 4 inch (102 mm) high, gray models

1шт.

11

D123964

DECAL

- uni-loader, brown

2шт.

12

321-5850

DECAL

- bucket control, if used

1шт.

13

139593A1

DECAL

- bucket control, graphic

1шт.

14

321-5849

DECAL

- loader arm control, if used

1шт.

15

139592A1

DECAL

- loader arm control, graphic

1шт.

16

321-5847

DECAL

- throttle, slow-fast, graphic, black turtle symbol up on white background, if used

1шт.

17

178662A1

DECAL

- throttle, slow-fast, graphic, white rabbit symbol up on black background, if used

1шт.

18

321-7001

DECAL

- Warning, batteries contain acid and explosive gas (Italian)

1шт.

19

321-6997

DECAL

- Warning, check and service cooling system (Italian)

1шт.

20

E21036

DECAL

- Raised/Lowered, parking latch and operators restraint instructions (Italian), used on models with dual seat bars

1шт.

21

175513A1

ADHESIVE

DECAL - hydraulic fluid, use SAE 15W/40 oil (Italian), HTO additive is required

1шт.

22

321-6999

DECAL

- Warning, before starting engine, fasten seat belt (Italian)

1шт.

23

321-7003

DECAL

- Warning, if you service the machine with loader lift arms raised (Italian)

1шт.

Выбрано товаров: 23
