Запчасти Case 1825 (9-38) - DECALS - ENGLISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS

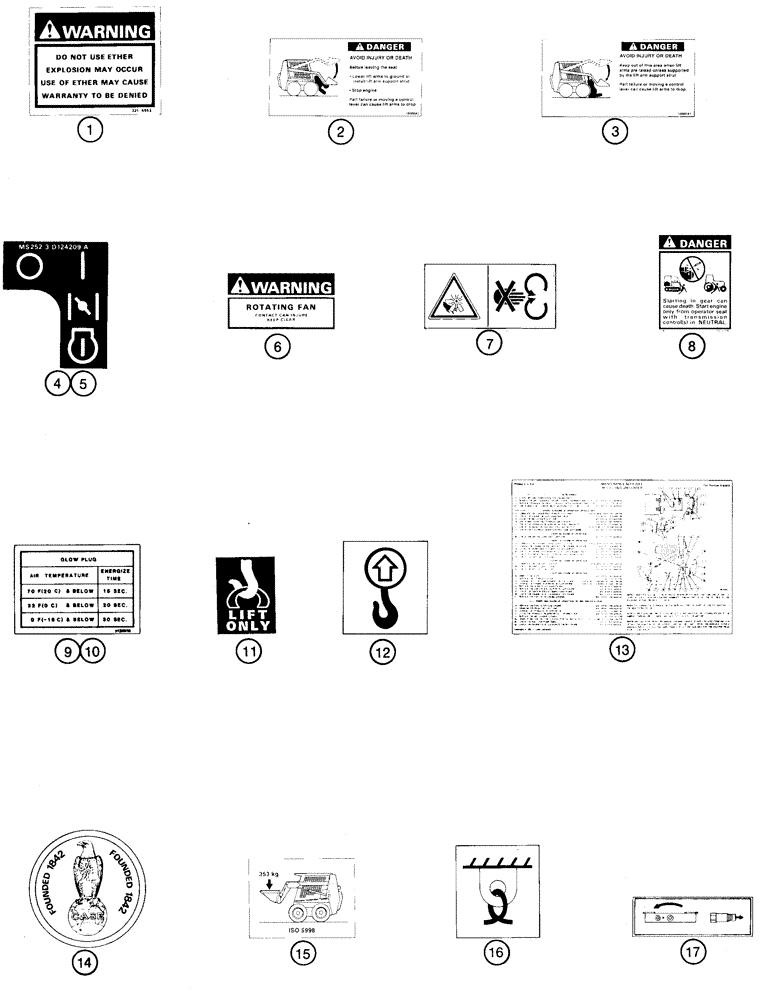

Схема запчастей Case 1825 - (9-38) - DECALS - ENGLISH, EUROPEAN MODELS (09) - CHASSIS/ATTACHMENTS
15
4
5
6
12
14
1
16
11
10
13
8
2
9
3
7
17

Артикул

Название

Примечание

Количество

1

321-6952

DECAL

- Warning, do not use ether, diesel models

1шт.

2

120950A1

DECAL

- Danger, before leaving the seat (English)

1шт.

3

120951A1

DECAL

- Danger, keep out of this area (English)

1шт.

4

D124209

DECAL

- ignition switch pattern, graphic, brown

1шт.

5

178664A1

DECAL

- ignition switch pattern, graphic, gray

1шт.

6

321-6686

DECAL

- Warning, rotating fan (English)

1шт.

7

175504A1

DECAL

- Warning, rotating fan, graphic

1шт.

8

175509A1

WARNING DECAL

- jump start, graphic

1шт.

9

H435049

DECAL

- glow plug, diesel models only, brown

1шт.

10

178663A1

DECAL

- glow plug, diesel models only, grey

1шт.

11

321-3587

DECAL

- lift only (English), use with lift brackets

4шт.

12

139729A1

DECAL

- lift only, graphic, use with lift brackets

4шт.

13

8-80909

DECAL

- maintenance schedule

1шт.

14

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

15

139948A1

DECAL

- operating capacity

1шт.

16

139728A1

DECAL

- tie down

4шт.

17

140026A1

DECAL

- auxiliary hydraulics, if used

1шт.

18

D55310

ADHESIVE

STRIP - non-skid, black, 1 x 10 inch long, not shown

4шт.

Выбрано товаров: 18
