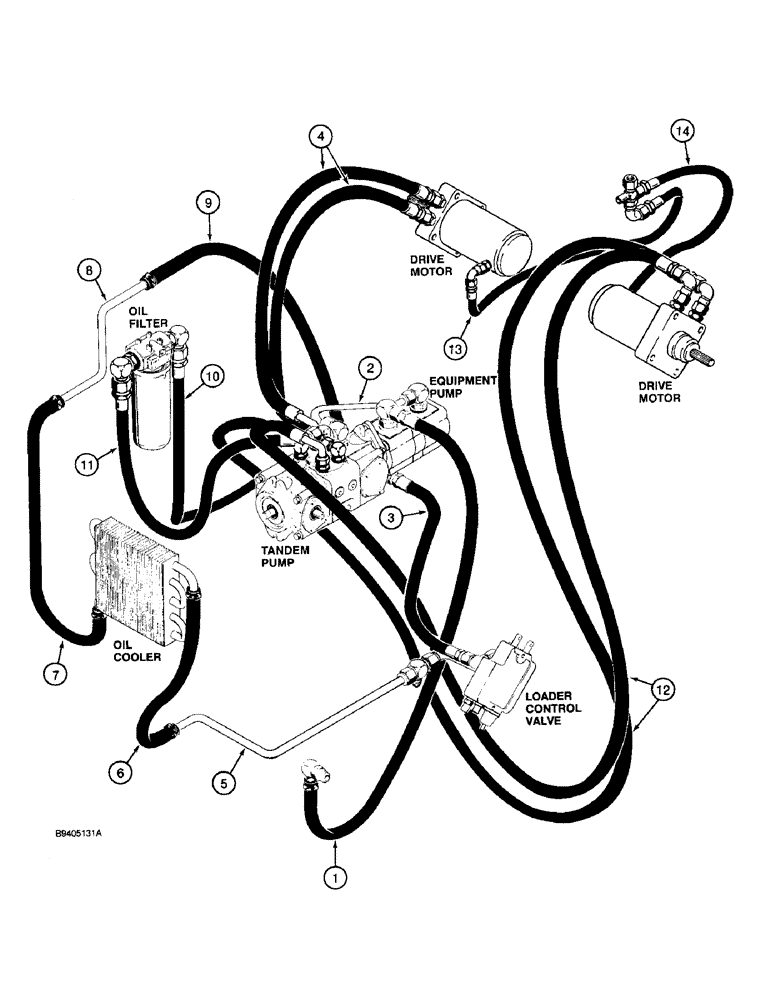

Запчасти Case 1825 (1-14) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS, NORTH AMERICAN MODELS P.I.N. JAF0096590 AND AFTER AND (00) - PICTORIAL INDEX

1

Hose at Hydraulic Tank to Front port of Equipment Pump, Page 8-11

1шт.

2

Tube from Equipment Pump to Tandem Pump, Page 8-11

1шт.

3

Hose from Front Port of Equipment Pump to Loader Control Valve, Page 8-11

1шт.

4

Hoses from Tandem Pump to Drive left-hand Drive Motor, Page 6-15

1шт.

5

Tube from Loader Control Valve to Oil Cooler, Page 8-13

1шт.

6

Hose from Loader Control Valve to Oil Cooler, Page 8-13

1шт.

7

Hose from Oil Cooler to Equipment Pump, Page 8-13

1шт.

8

Tube from Oil Cooler to Equipment Pump, Page 8-13

1шт.

9

Hose from Oil Cooler to Equipment Pump, Page 8-13

1шт.

10

Hose from Oil Filter to Tandem Pump, Page 8-3

1шт.

11

Hose from Oil Filter to Tandem Pump, Page 8-3

1шт.

12

Hose from Drive Motors to Tandem Pump, Page 6-15

1шт.

13

Hose from left-hand Drive Motor to the Tee, Page 6-15

1шт.

14

Hose from right-hand Drive Motor to the Tee, Page 6-15

1шт.
