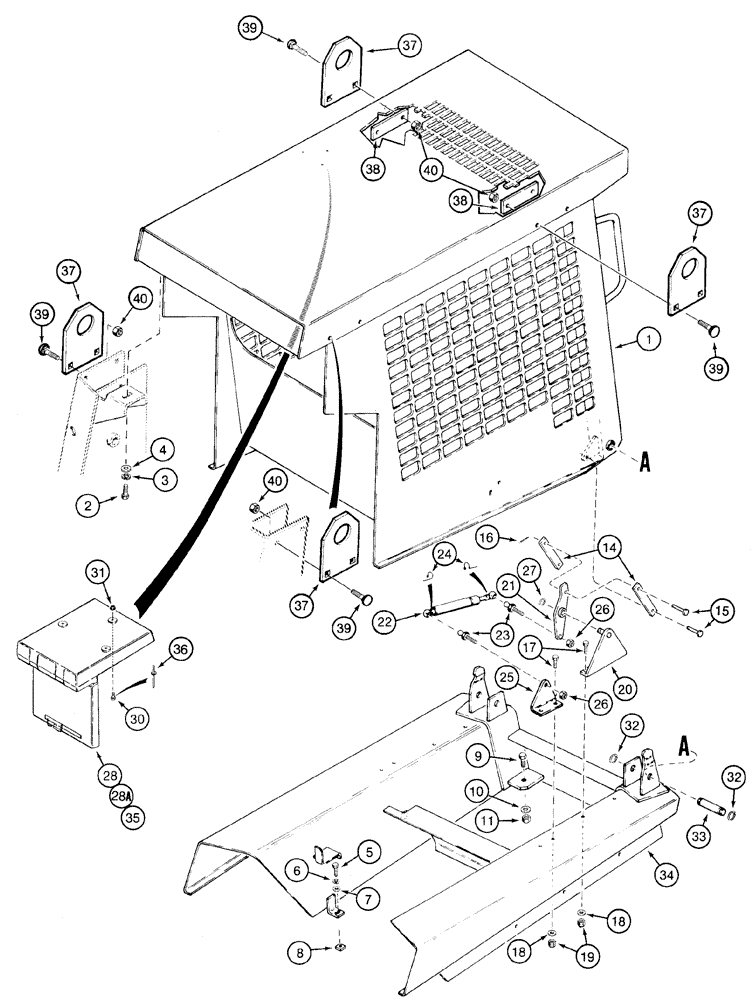

Запчасти Case 1825 (9-16) - ROPS & LIFTING EYES - NORTH AMERICAN MODELS, PRIOR TO P.I.N. JAF0096163 (09) - CHASSIS/ATTACHMENTS

1

D134588

FRAME

- ROPS canopy

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

ROPS Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , ROPS 1/2"

2шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, ROPS

2шт.

5

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

ROPS Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , ROPS 5/16"

2шт.

7

H426775

WASHER

- flat, special, hardened, ROPS

2шт.

8

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC, ROPS

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

ROPS Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, ROPS

2шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, , ROPS 1/2"-13, GC

2шт.

14

D120691

LINK

- bellcrank, to ROPS frame

4шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened, ROPS

4шт.

16

H436613

COTTER PIN

PIN - cotter, special, ROPS

4шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, ROPS

8шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), ROPS

8шт.

19

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , ROPS 5/16"-18, GC

8шт.

20

D120686

BRACKET

- bellcrank, ROPS

2шт.

21

D120692

CRANK

BELLCRANK - spring cylinder, ROPS

2шт.

D120660

GAS STRUT

CYLINDER ASSEMBLY - spring, Includes: Ref. 22 - 24, ROPS

2шт.

22

NSS

NOT SOLD SEPARAT

CYLINDER - spring, ROPS

1шт.

23

1340345C1

BALL STUD

STUD - ball, cylinder, ROPS

2шт.

24

F44883

CLIP,DIN 71805 - S10

RETAINER - lock, ball stud, ROPS

2шт.

25

D120689

BRACKET

- cylinder mounting, ROPS

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, ROPS

4шт.

27

100-1150

SNAP RING,#50, Ext

Ring, Snap, , bellcrank, was A11538, ROPS #50, Ext

2шт.

28

R38893

CASE

BOX - operators manual, Includes: Ref. 28A, ROPS, Serial Range: -JAF0074962

1шт.

28a

N7120

LATCH

- operators manual box, ROPS

1шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, ROPS

3шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

ROPS Flg, USR, 1/4"-20

3шт.

32

100-1175

SNAP RING,#75, Ext

Ring, Snap, , pivot pin, ROPS #75, Ext

4шт.

33

D120704

PIN,19.05mm OD x 88mm L

- pivot, ROPS

2шт.

34

D135071

FRAME

- operators compartment, ROPS

1шт.

35

R46464

CASE

BOX - operators manual, ROPS, Start Serial: JAF0074962

1шт.

36

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 17/32 inch, ROPS

1шт.

37

D132975

LIFTING RING

BRACKET - lift, 229 mm tall, eyes

4шт.

38

D132976

BAR

- backup, front lift bracket, eyes

2шт.

39

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, lifting eyes

8шт.

40

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC, lifting eyes

8шт.
