Запчасти Case 1825 (9-14) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

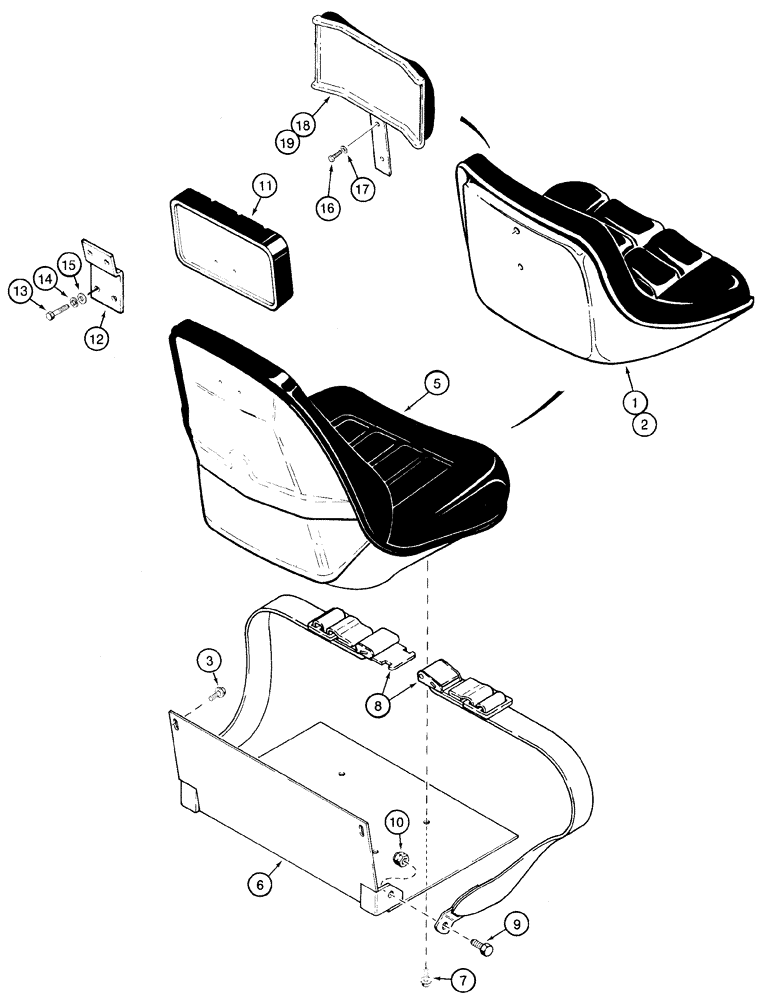

Схема запчастей Case 1825 - (9-14) - SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS
18
5
13
12
7
10
3
16
2
9
17
6
1
15
19
11
14
8

Артикул

Название

Примечание

Количество

1

D125141

SEAT

- operators, brown, complete, Includes: Ref. 3 and 4 JAF0096621 to

1шт.

2

177641A1

SEAT

- operators, gray, complete, Includes: Ref. 3 and 4

1шт.

3

N6674

CLIP

- trim, not shown

2шт.

4

N14342

GASKET

TRIM - cushion retaining, not shown

1шт.

5

E20007

SEAT

ASSEMBLY - operator, brown, complete, no longer available, order Ref. 1, Serial Range: -JAF0096621

1шт.

6

D135014

PLATE

SUPPORT - seat

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

8

D133868

SAFETY BELT ,2.00" W

2.00" W

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

E20008

BACKREST

PAD - head rest, brown, used with E20007 seat only

1шт.

12

H437866

BRACKET

- head rest, used with E20007 seat only

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

18

128181A1

BACKREST

PAD - headrest, brown, used with D125141 seat

1шт.

19

177642A1

CUSHION

PAD - headrest, gray, used with 177641A1 seat

1шт.

While the seat no longer has threaded holes (the nut plates were removed). There are nut plates on the back rest, 177642A1. In order to install, use a utility knife to cut the seat cover at the top of the seat to allow the back rest plate to slip into the seat. Align the threaded holes in the back rest plate with the holes in the seat back and install the hardware. This has been done this way for a while now in production. There are no other changes planned. 4-1-99 cw.

1шт.
