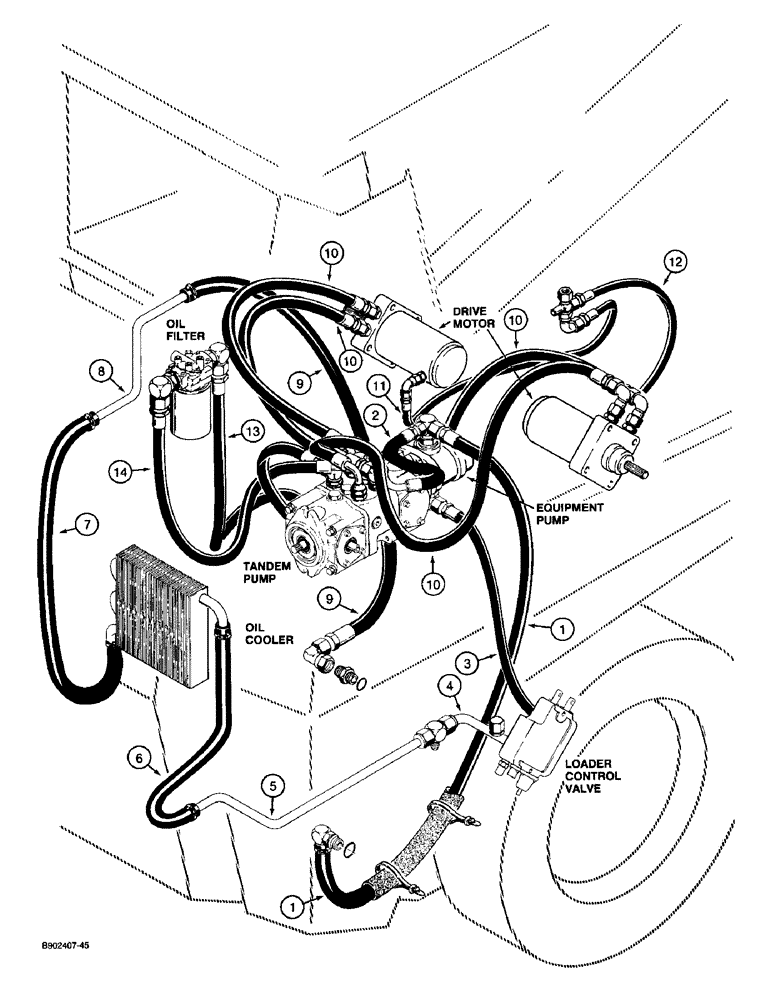

Запчасти Case 1825 (1-12) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS NORTH AMERICAN MODELS AND EUROPEAN MODELS (00) - PICTORIAL INDEX

1

Hose at Hydraulic Tank to Equipment Pump, Page 8-9

1шт.

2

Tube from Equipment Pump to Tandem Pump, Page 8-11

1шт.

3

Hose from Equipment Pump to Loader Control Valve, Page 8-9

1шт.

4

Tube from Loader Control Valve to Intermediate Tube to Oil Cooler, Page 8-9

1шт.

5

Intermediate Tube to Oil Cooler, Page 8-9

1шт.

6

Hose to Oil Cooler, Supply, Page 8-9

1шт.

7

Hose from Oil Cooler, Return, Page 8-9

1шт.

8

Intermediate Tube from Oil Cooler to Hydraulic Reservoir, Page 8-9

1шт.

9

Hose to Hydraulic Reservoir, Page 8-9

1шт.

10

Hose at Drive Motors to Tandem Pump, Page 8-13

1шт.

11

Hose at Left-Hand Drive Motor to Tee, Page 8-13

1шт.

12

Hose at Right-Hand Drive Motor to Tee, Page 8-13

1шт.

13

Hose from Equipment Pump to Filter, Page 8-15

1шт.

14

Hose from Filter to Tandem Pump, Page 8-15

1шт.
