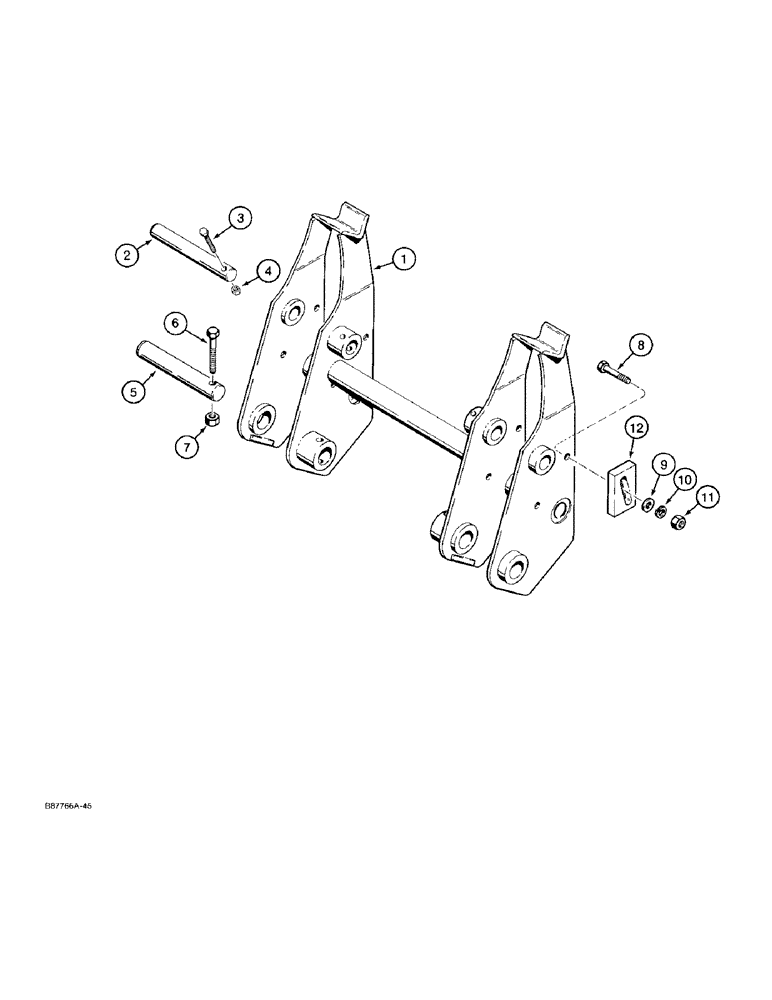

Запчасти Case 1825 (9-12) - TOOL TACH (09) - CHASSIS/ATTACHMENTS

1

D138769

FRAME ASSY

FRAME - tool tach, equipment

1шт.

2

D138890

PIN,22.22mm OD x 148mm L

- mounting

2шт.

3

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.

4

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

5

D138891

PIN,25.4mm OD x 149mm L

- mounting, at lift frame

2шт.

6

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

- hex, 3/8 NC x 2-1/2 inch, grade 8

2шт.

7

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

D138932

WEDGE

BLOCK - bucket aligning

2шт.
