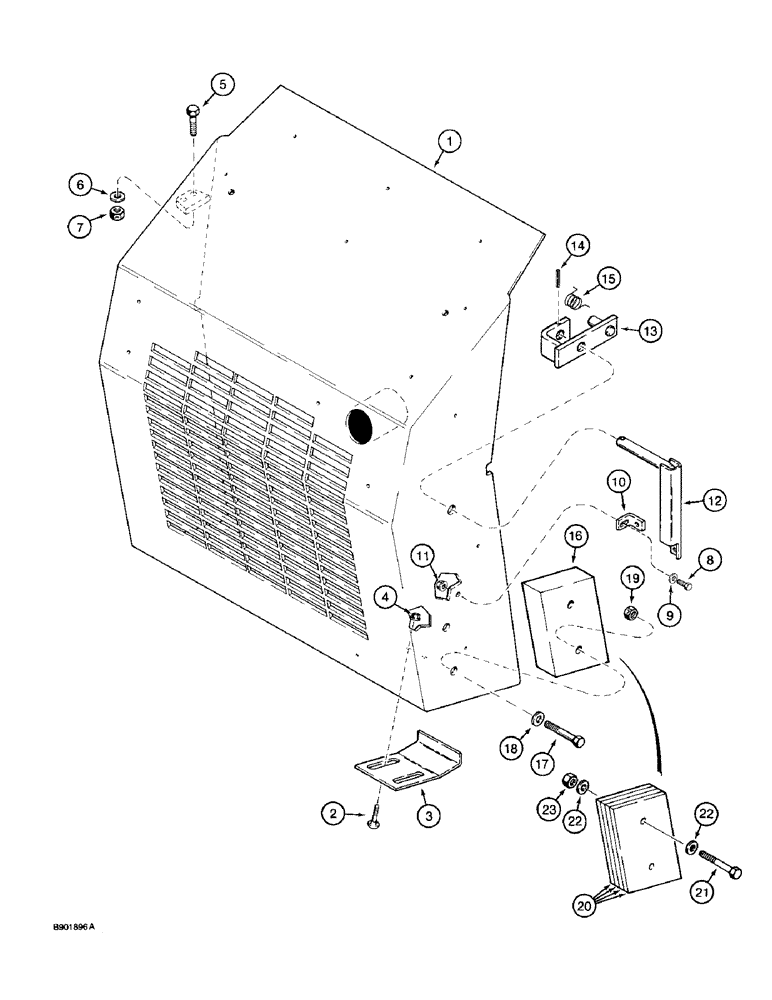

Запчасти Case 1825 (9-10) - REAR COUNTERWEIGHT AND SWING OUT DOOR (09) - CHASSIS/ATTACHMENTS

1

H674096

DOOR ASSY.

DOOR - rear swing out

1шт.

2

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

3

H434914

SUPPORT

BRACKET - rear door, lower

1шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

9

H426775

WASHER

- flat, hardened

1шт.

10

D124776

BRACKET

ANGLE - latch positioning, outer

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

1шт.

12

D134824

HANDLE

- rear door

1шт.

13

D134821

LATCH

- rear door

1шт.

14

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

15

D132020

SPRING

- latch

1шт.

16

H437663

WEIGHT

COUTERWEIGHT - rear, no longer used, order Ref. 20, 21, 22, and 23

2шт.

17

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

use with Ref 16 Hex, 5/8"-11 x 3", G5

4шт.

18

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, use with Ref. 16

4шт.

19

232-41110

NUT,5/8"-11, GC

NUT, LOCK, , Use with Ref. 16 5/8"-11, GC

4шт.

20

108424A1

BALANCER

COUNTERWEIGHT - rear

8шт.

21

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

22

H274894

WASHER

- flat, 17/32 x 1-5/64 inch

8шт.

23

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.
