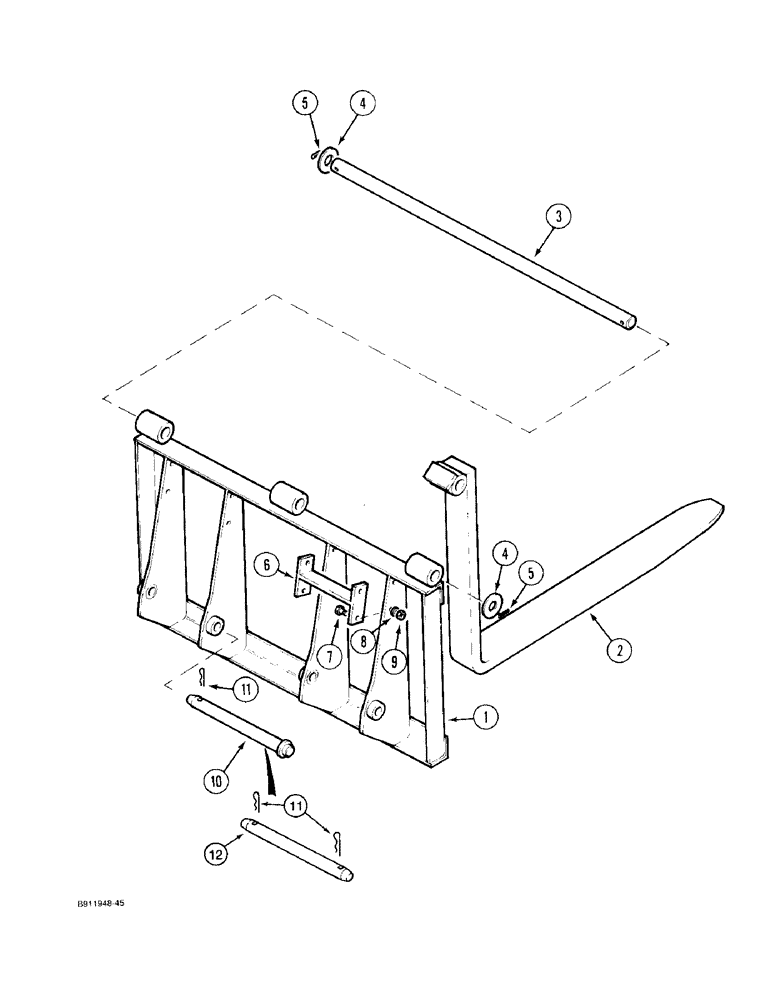

Запчасти Case 1825 (9-08) - PALLET FORK (09) - CHASSIS/ATTACHMENTS

1

D138991

FRAME

- fork, 30 inch (760 mm) wide, machinery item

1шт.

2

D138986

FORK

- pallet

2шт.

3

D57020

ROD

- fork mounting

1шт.

4

95-11106

WASHER,1" x 2" x .134"

- flat, 1 inch

2шт.

5

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

6

D138882

PIN ASSY.

PIN - tool tach

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

10

D138884

PIN

- to lower retention holes, tool tach, no longer required, order two of Ref. 12 and four of Ref. 11 for service

2шт.

11

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16" Replaces 136-251)

2-4шт.

12

H438549

PIN

- to lower retention holes, tool tach

2шт.
