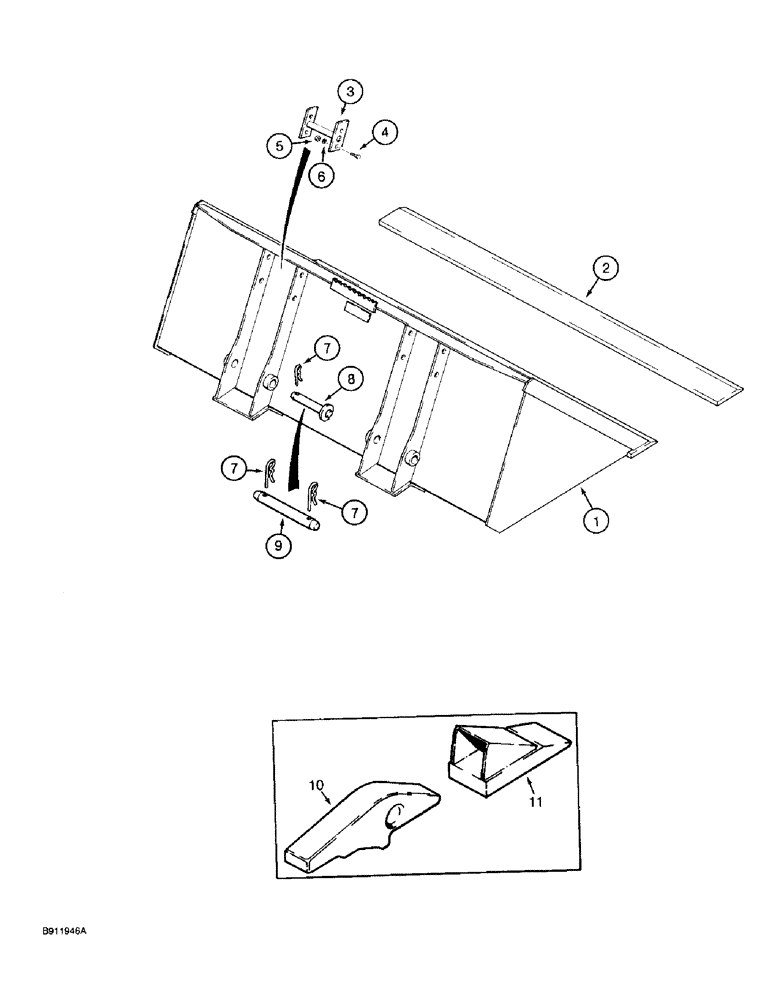

Запчасти Case 1825 (9-06) - LOADER BUCKETS, 44" (1118 MM) WIDE BUCKET (09) - CHASSIS/ATTACHMENTS

1

H674524

BUCKET

- 44 inch (1118 mm) wide, machinery item, order from the Machinery Price List, Includes: Ref. 2

1шт.

2

D138892

EDGE, CUTTING

EDGE - cutting, front

1шт.

3

D138882

PIN ASSY.

PIN - weldment

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

7

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16" (Replaces 136-251)

2-4шт.

8

D138884

PIN

- loader attachment bar to bucket, no longer required, order two of Ref. 9 and four of Ref. 7 for service

2шт.

9

H438549

PIN

- Tool Tach

2шт.

1

H674527

BUCKET

- 49 inch (1245 mm) wide, machinery item, order from the Machinery Price List, Includes: Ref. 2

1шт.

2

D138861

EDGE, CUTTING

EDGE - cutting, front, 49" (1245 mm) wide bucket

1шт.

3

D61308

PIN

- weldment, 49" (1245 mm) wide bucket

2шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

49" (1245 mm) wide bucket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 49" (1245 mm) wide bucket 1/2"-13, G5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 49" (1245 mm) wide bucket 1/2"

8шт.

7

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16" (Replaces 136-251), 49" (1245 mm) wide bucket

2-4шт.

8

D138886

PIN

- loader attachment bar to bucket, no longer required, order two of Ref. 9 and four of Ref. 7 for service, 49" (1245 mm) wide bucket

2шт.

9

H438550

PIN,22.22mm OD x 207mm L

- Tool Tach, 49" (1245mm) wide bucket

2шт.

10

T41165

TOOTH

SHANK - tooth, was D41165, bucket

1шт.

11

T41166

TOOTH

POINT - tooth, bucket

1шт.
