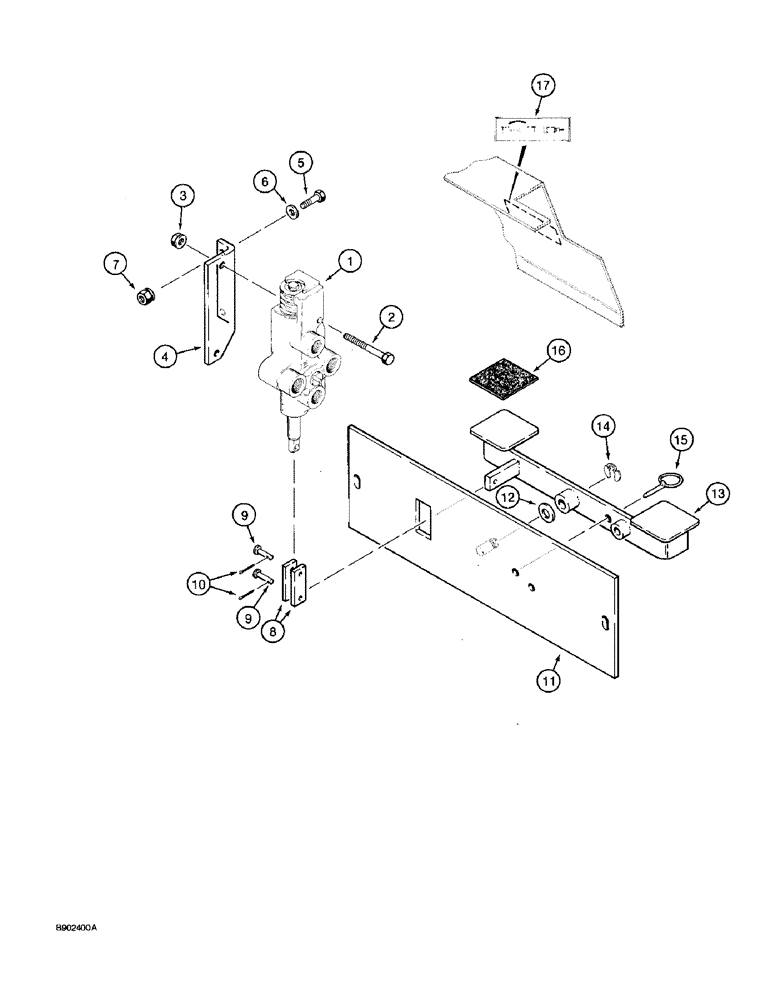

Запчасти Case 1825 (8-36) - AUXILIARY CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

D64670

VALVE

ASSEMBLY - control, auxiliary, parts list Fig. 8-18

1шт.

2

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.

4

H437950

SUPPORT

BRACKET - valve mounting

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.

8

111897A1

DRAG LINK

LINK - valve to pedal, was H437919

2шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16 x 57/64 inch

2шт.

10

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

11

H674302

LARGE PLATE

PLATE - pedal mounting

1шт.

12

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

13

H674467

PEDAL

- control valve

1шт.

14

D143415

SNAP RING,0.50” ID, Klipring

RING - retaining

1шт.

15

D94535

PIN,9.52mm OD

- pedal mounting

1шт.

16

D55216

PAD,2" x 9"

PAD - non-slip

2шт.

17

140026A1

DECAL

- auxiliary hydraulics

1шт.
