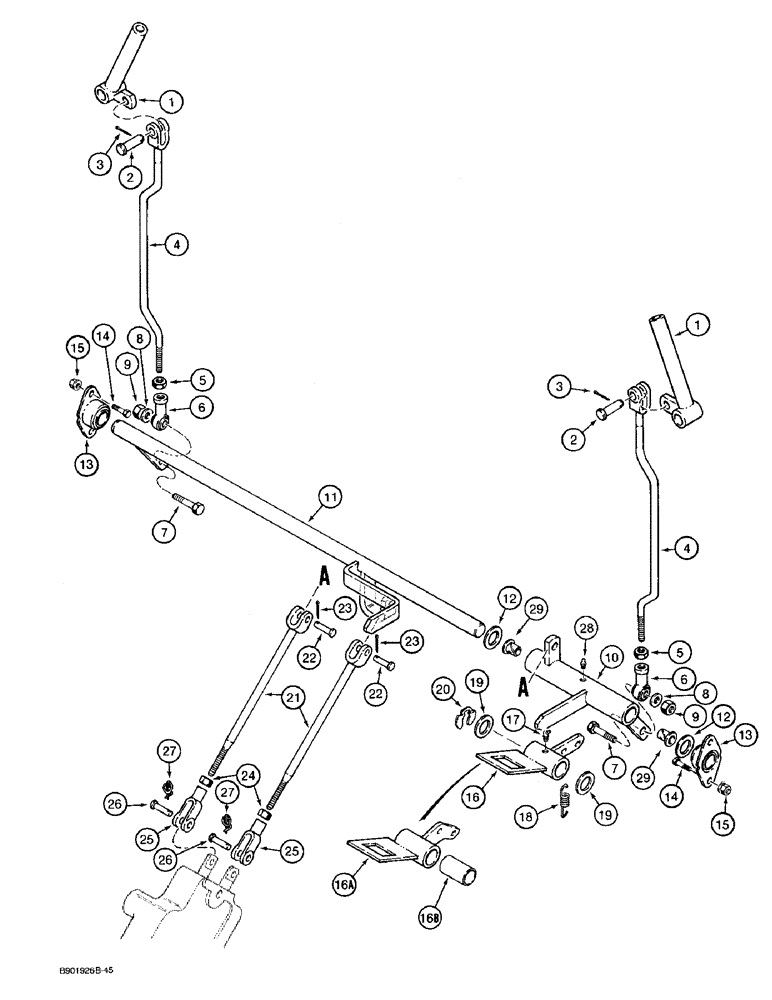

Запчасти Case 1825 (8-34) - LOADER CONTROLS (08) - HYDRAULICS

1

D135154

HANDLE

LEVER - control, loader, rignt-hand bucket control, left-hand lift arm control, see Fig. 4-26 for lever used on models with a horn

2шт.

2

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

3

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

4

E99870

TIE-ROD

ROD - control, was D138716

2шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

6

A32398

BALL JOINT

JOINT - ball, 3/8 inch NF, was D59922

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

10

D135110

LEVER

BELLCRANK - shaft, was H674341

1шт.

11

D135106

SHAFT

- mounting

1шт.

12

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

2шт.

13

D139039

BEARING ASSY,19mm ID

BEARING - shaft mounting

2шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

H674339

LOCK

PLATE - loader lock, no longer used, order Ref. 16A and 16B

1шт.

16a

119816A1

LARGE PLATE

PLATE - loader lock JAF0096515 to

1шт.

16b

119616A1

BUSHING

- lock plate, use with Ref. 16A

1шт.

17

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 45 degree, 1/8 PT self-tap x 3/4 inch

1шт.

18

120952A1

SPRING

- loader lock, was 103735A1 and A33699

1шт.

19

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

2шт.

20

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER - loader lock, was D95097

1шт.

21

H674563

BAR

ROD - connecting, loader control valve

2шт.

22

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

23

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

24

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

25

H382283

YOKE,5/16" - 24

CLEVIS - at loader control valve

2шт.

26

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis, special

2шт.

27

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER - clevis pin

2шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

1шт.

29

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- nylon, if used

2шт.
