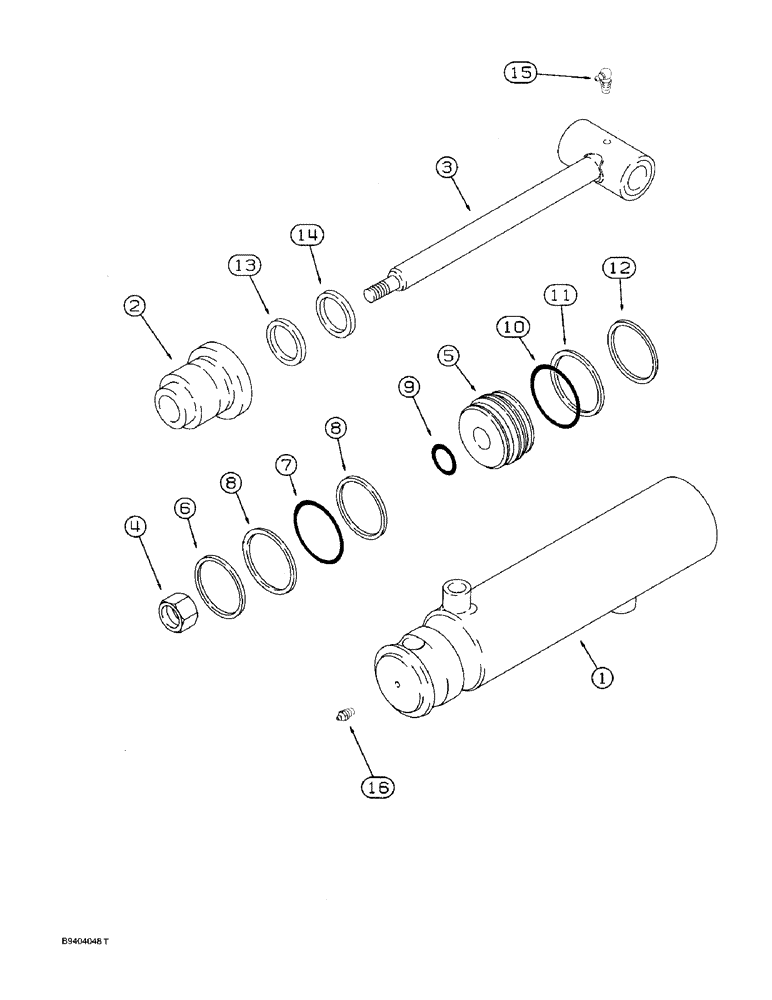

Запчасти Case 1825 (8-32) - LOADER BUCKET CYLINDER 104517A1, P.I.N. JAF0096313 AND AFTER (08) - HYDRAULICS

104517A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, 2 inch (51 mm) x 27 inch (686 mm) stroke, Includes: Ref. 1 - 16

2шт.

p/n 104517a1 should read 2" x 13.098". stroke see Fig. 8-22 #19A

1шт.

1

110508A1

JACK BODY

TUBE - cylinder

1шт.

2

108641C1

GLAND

- cylinder

1шт.

3

110509A1

PISTON ROD

ROD - cylinder

1шт.

4

231-41310

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

5

110501A1

JACK PISTON

PISTON - cylinder

1шт.

110510A1

SEAL KIT

KIT - seal, Includes: Ref. 6 - 14

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - outer, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - inner, piston

1шт.

10

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Gland -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

11

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING - backup, gland

1шт.

12

140600C1

RETAINING WIRE

RING - lock, gland, was 461180R1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL- rod, gland

1шт.

14

532773R1

WIPER SEAL

SEAL- rod wiper, gland

1шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
