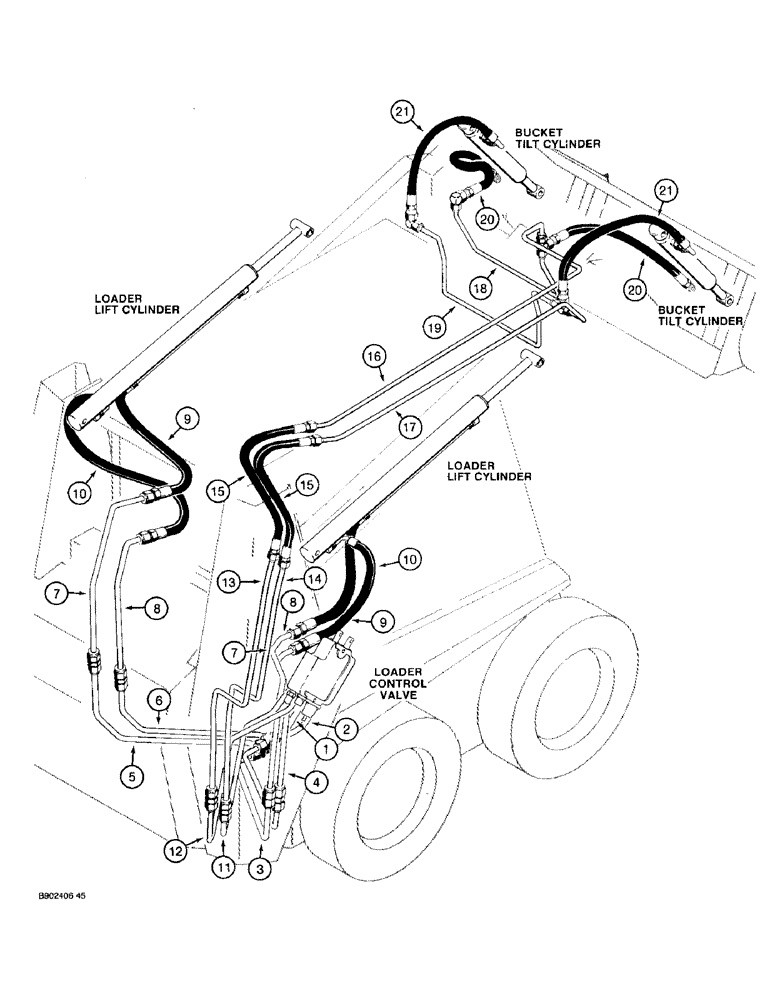

Запчасти Case 1825 (1-10) - PICTORIAL INDEX, LOADER LIFT AND BUCKET TILT HYDRAULICS (00) - PICTORIAL INDEX

1

Tube at Control Valve, Port "A", Loader Lift, Page 8-3

1шт.

2

Tube at Control Valve, Port "B", Loader Lift, Page 8-3

1шт.

3

Intermediate Tube to Rod End of Lift Cylinders, Page 8-3

1шт.

4

Intermediate Tube to Rod End of Lift Cylinders, Page 8-3

1шт.

5

Crossover Tube to Rod End of Lift Cylinders, Page 8-3

1шт.

6

Crossover Tube to Closed End of Lift Cylinders, Page 8-3

1шт.

7

Tube to Rod end of Lift Cylinders, Page 8-3

1шт.

8

Tube to Closed End of Lift Cylinders, Page 8-3

1шт.

9

Hose to Rod End of Lift Cylinders, Page 8-3

1шт.

10

Hose to Closed End of Lift Cylinders, Page 8-3

1шт.

11

Tube at Control Valve, Port "A", Bucket Tilt, Page 8-5

1шт.

12

Tube at Control Valve, Port "B", Bucket Tilt, Page 8-5

1шт.

13

Intermediate Tube to Rod End of Bucket Tilt Cylinders, Page 8-5

1шт.

14

Intermediate Tube to Closed End of Bucket Tilt Cylinders, Page 8-5

1шт.

15

Intermediate Hoses to Bucket Tilt Cylinders, Page 8-5

1шт.

16

Tube to Rod End of Bucket Tilt Cylinders, Page 8-5

1шт.

17

Tube to Closed End of Bucket Tilt Cylinders, Page 8-5

1шт.

18

Crossover Tube to Rod End of Bucket Tilt Cylinders, Page 8-5

1шт.

19

Crossover Tube to Closed End of Bucket Tilt Cylinders, Page 8-5

1шт.

20

Hose to Rod End of Bucket Tilt Cylinders, Page 8-5

1шт.

21

Hose to Closed End of Bucket Tilt Cylinders, Page 8-5

1шт.
