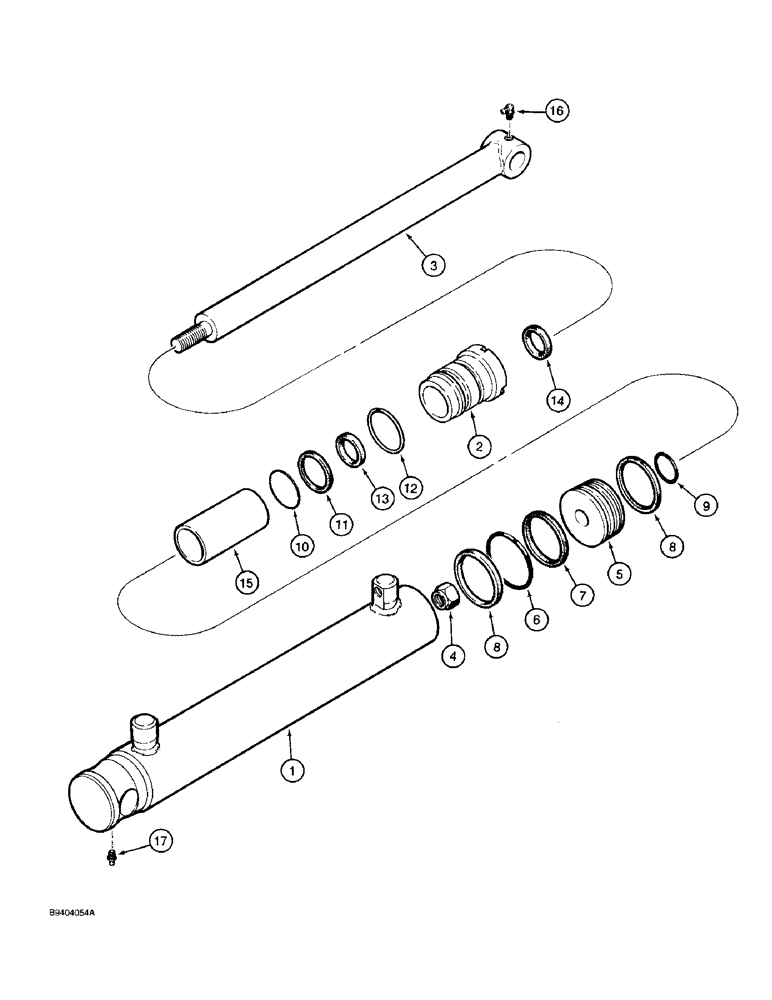

Запчасти Case 1825 (8-28) - LOADER LIFT CYLINDER 104516A1, P.I.N. JAF0096313 AND AFTER (08) - HYDRAULICS

104516A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 2 inch (51 mm) x 27 inch (686 mm) stroke, Includes: Ref. 1 - 17

2шт.

1

110504A1

JACK BODY

TUBE - cylinder

1шт.

2

110506A1

CYLINDER END CAP

GLAND - cylinder

1шт.

3

110505A1

PISTON ROD

ROD - cylinder

1шт.

4

231-41310

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

5

110501A1

JACK PISTON

PISTON - cylinder

1шт.

110507A1

SEAL KIT

KIT - seal, Includes: Ref. 6 - 14

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - outer, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - inner, piston

1шт.

10

238-6133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

Gland -133, 90 Duro, 1.799" ID x .103" Thk

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

12

NSS

NOT SOLD SEPARAT

RING - lock, gland

1шт.

13

119214C1

SEAL

- rod, gland

1шт.

14

536308R91

WIPER SEAL

- rod wiper, gland

1шт.

15

110502A1

SPACER

- rod

1шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
