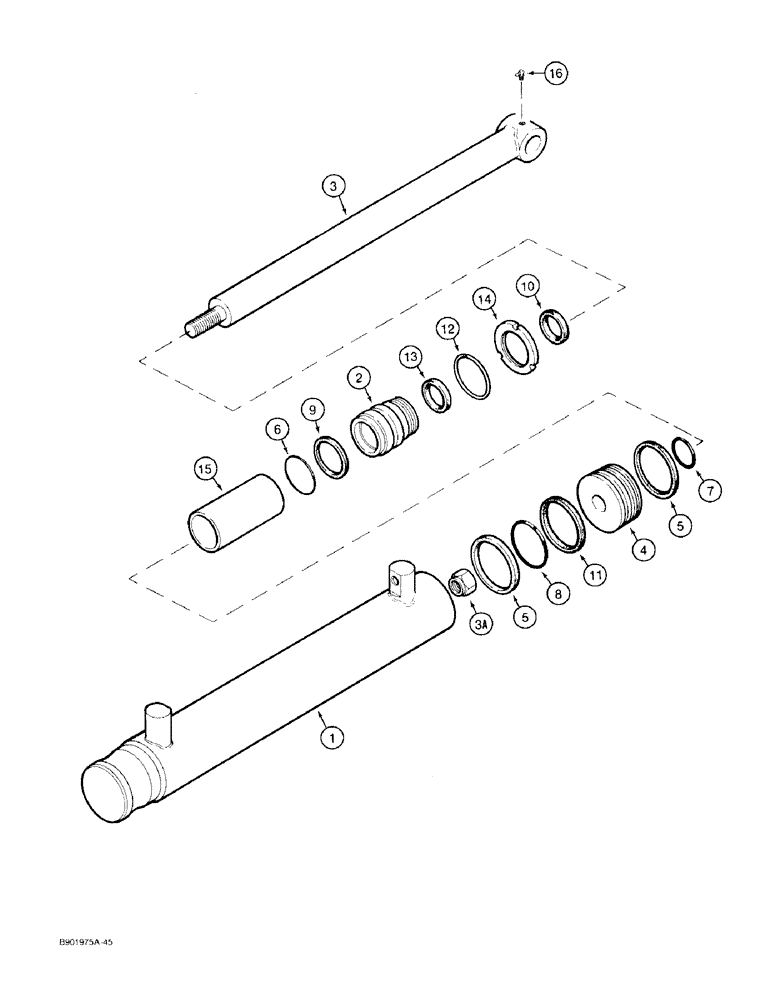

Запчасти Case 1825 (8-26) - LOADER LIFT CYLINDER D136838, PRIOR TO P.I.N. JAF0096313 (08) - HYDRAULICS

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 (51) ID x 27 inch (686 mm) stroke, loader lift, see Fig. 9-04 for mounting hardware, Includes: Ref. 1 - 16

2шт.

1

H438547

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

N14640

GLAND

- cylinder

1шт.

3

H438548

PISTON ROD

ROD - cylinder, Includes: Ref. 3A

1шт.

3a

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

NUT, LOCK, , Cylinder rod, was H436413 5/8"-11, GA

1шт.

4

N14641

PISTON

- cylinder

1шт.

N14639

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 5 - 14

1шт.

5

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

6

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Gland, was 290987R1 -224, 70 Duro, 1.734" ID x .139" Thk

1шт.

7

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Piston, Inner, was A59066

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup, gland O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod, gland

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - outer, Serial Range: O-ring-piston

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

14

H220459

NUT

RING - lock

1шт.

15

H436414

SPACER

- internal stop

1шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
