Запчасти Case 1825 (8-24) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D64670

VALVE

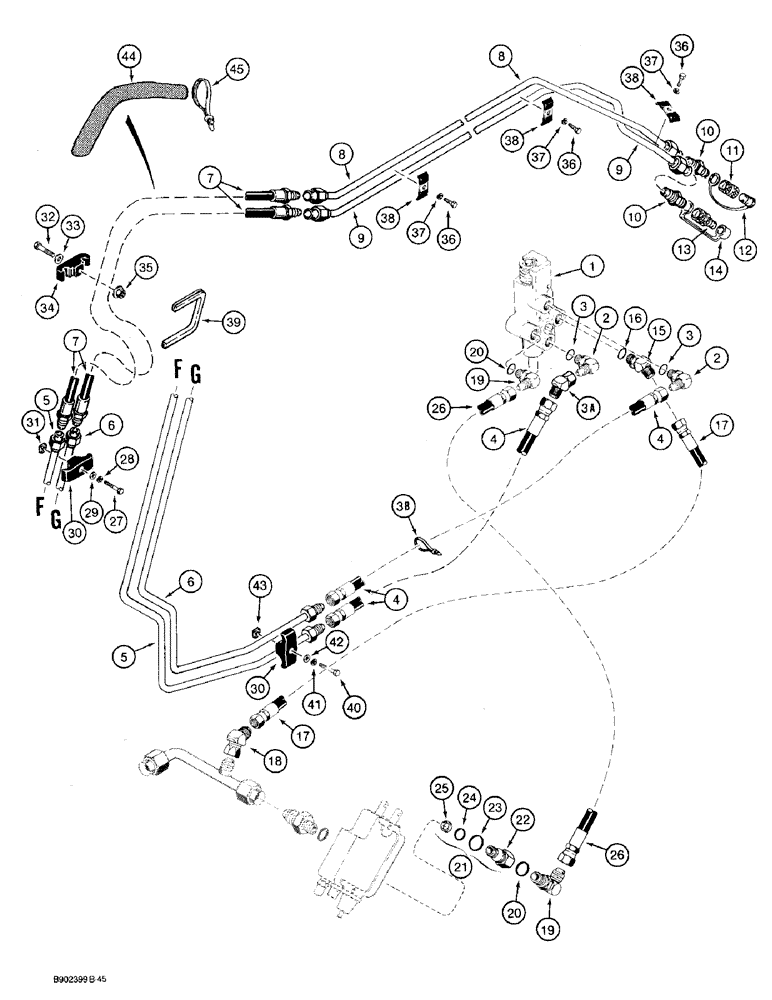

ASSEMBLY - control, auxiliary, parts list Fig. 8-18

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel str thread

1шт.

3b

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

H674577

HOSE

- 812 mm long, at aux control valve to rear tubes

2шт.

5

H674477

TUBE,12.7 mm OD x 577, 103 mm L

- rear, port "A"

1шт.

6

H674476

TUBE,12.7 mm OD x 523, 103 mm L

- rear, port "B"

1шт.

7

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

- 950 mm long, intermediate

2шт.

8

H674481

TUBE,0.5" OD

- front, to quick disconnect

1шт.

9

H674480

TUBE,0.5" OD

- front, to quick disconnect

1шт.

10

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

2шт.

11

D60707

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female

1шт.

12

D62402

PLUG

- dust, at female quick disconnect

1шт.

13

D60708

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male

1шт.

14

H437970

PLUG

CAP - dust, at female quick disconnect

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

- Outlet port of loader control valve to outlet port of auxiliary control valve 0.50" ID x 16.00", SAE 100R2

1шт.

18

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 deg, 7/8-14 inch flare x swivel straight thread

1шт.

19

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

H436154

FITTING,7/8" - 14

SLEEVE ASSEMBLY - power beyond, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - power beyond

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

A52424

BACK-UP RING

RING - backup, sleeve

1шт.

26

R35829

HOSE

- 21 inch long, inlet port of auxiliary control valve to side port of loader control valve, was D28524

1шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

30

D120679

CLAMP,Tube, 1/2"

- rear tube

2шт.

31

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

34

D124301

CLAMP,3/4" ID

- hose

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

3шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

38

A63323

CLAMP

- tube at loader arms

3шт.

39

D38500

LINING

TRIM - edge, 9-13/16 inch (249 mm) long, upper chassis, cut from F42827 bulk trim, see below

1шт.

40

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

43

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

44

135159A1

LOOM

SLEEVE - hose, European Models only

1шт.

45

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, retaining, used with Ref. 45

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.
