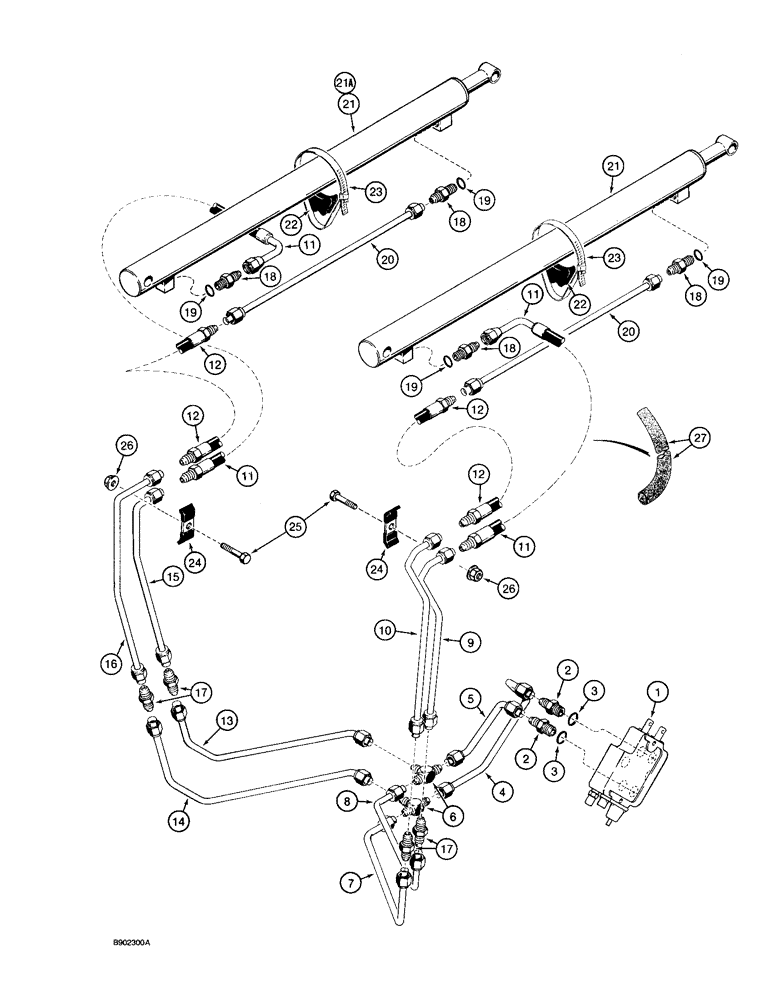

Запчасти Case 1825 (8-20) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, loader, for correct assembly and components see page 8-7

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D122513

TUBE

- at control valve, port A

1шт.

5

D122511

TUBE

- at control valve, port B

1шт.

6

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

2шт.

7

D122519

TUBE

- intermediate, to rod end of right-hand lift cylinder

1шт.

8

D122521

TUBE

- intermediate, to closed end of right-hand lift cylinder

1шт.

9

D136942

TUBE

- to closed end of right-hand lift cylinder

1шт.

10

D136946

TUBE

- to rod end of right-hand lift cylinder

1шт.

11

D139490

HOSE

- 340 mm long, to closed end of lift cylinder

2шт.

12

E99973

HOSE

- 450 mm long, to rod end of lift cylinder

2шт.

13

D122515

TUBE

- crossover, to closed end of left-hand lift cylinder

1шт.

14

D122517

TUBE

- crossover, to rod end of left-hand lift cylinder

1шт.

15

D136944

TUBE

- to closed end of left-hand lift cylinder

1шт.

16

D136948

TUBE

- to rod end of left-hand lift cylinder

1шт.

17

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 19

4шт.

20

E20104

HYD TUBE,19.53 mm OD x 535 mm L

TUBE - to rod end of lift cylinder, was D139488

2шт.

21

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Fig. 8-26, Serial Range: -JAF0096313

2шт.

21a

104516A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, parts list Fig. 8-28, Start Serial: JAF0096313

2шт.

22

D38648

BLOCK

INSULATOR - rubber, lift cylinder

2шт.

23

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

2шт.

24

R17319

CLAMP

- tube, was H434900

2шт.

25

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.

27

135159A1

LOOM

SLEEVE - hose 700 mm long, European machines P.I.N. JAF0140357 And After

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
