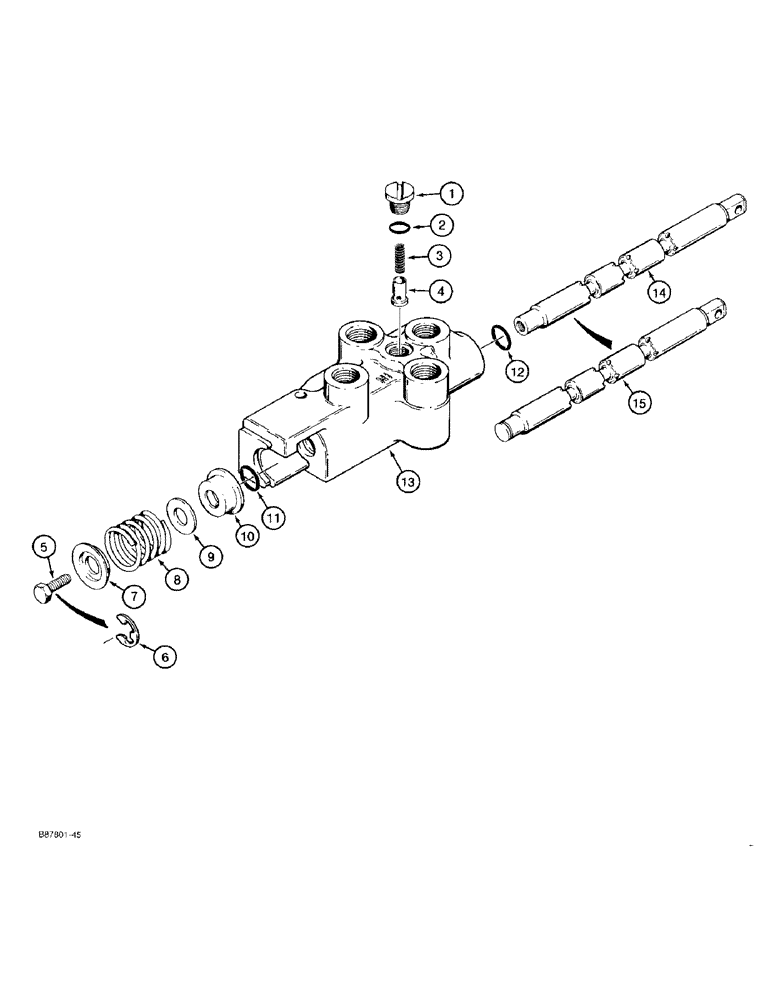

Запчасти Case 1825 (8-18) - AUXILIARY HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

D64670

VALVE

ASSEMBLY - control, auxiliary hydraulic, see Fig. 8-36 for mounting parts, Includes: Ref. 1 - 15

1шт.

H47506

PLUG

ASSEMBLY - load check valve, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

2

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Plug, was N8537 -112, Cl 7, .487" ID x .103" Thk

1шт.

3

FH730374

SPRING

- load check valve

1шт.

4

FH730366

PLUNGER

POPPET - load check valve

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

- special, used with Ref. 14, if used

1шт.

6

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , spool, used with ref. 15, if used #50, .392" Dia, E-Type

1шт.

7

F59116

WASHER

SEAT - spring, outer

1шт.

8

H220517

SPRING

- spool, centering

1шт.

9

H746164

WASHER

- special

1шт.

10

H52902

CAP

SEAT - spring, inner

1шт.

11

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve body, spool detent end, was A7982 -114, 70 Duro, .612" ID x .103" Thk

1шт.

12

F37887

O-RING

- valve body, spool eye end

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - control valve, threaded open end, if used

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - control valve, closed end with groove, if used

1шт.
