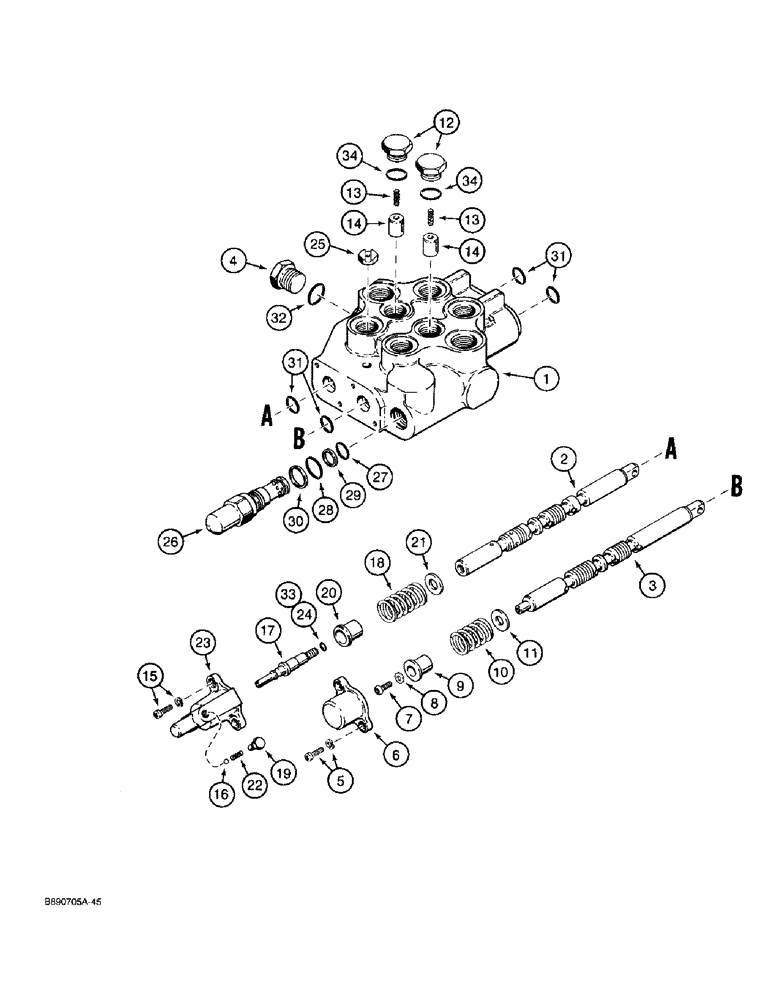

Запчасти Case 1825 (8-16) - LOADER CONTROL VALVE (08) - HYDRAULICS

H673218

VALVE

ASSEMBLY - loader control, no longer available, order H674734 valve for service, Includes: Ref. 1 - 34 and kit

1шт.

H673218 VENDOR# ON PART SHOULD BE 1622AN.

1шт.

H674734

VALVE

ASSEMBLY - loader control, Includes: Ref. 1 - 34 and kit

1шт.

H674734 VENDOR# ON PART IS 1622CK

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - loader lift

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - loader bucket

1шт.

4

132547A1

PLUG

- power beyond, was H436435

1шт.

H673571

KIT

- centering spring, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW - includes lock washer, end cap

2шт.

6

N9528

CAP

- bucket spool end

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - spring seat, bucket spool

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - spring seat, bucket spool

1шт.

9

N9529

SEAT

- spring, bucket spool

1шт.

10

N9539

TENSION SPRING

SPRING - centering, bucket spool

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

- load check, was H673572, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

H673573

KIT

- detent float, used with H673218 valve, Includes: Ref. 15 - 24

1шт.

H674617

SET

KIT - detent float, used with H674734 valve, Includes: Ref. 15 - 24

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - includes lock washer, detent float

2шт.

16

NSS

NOT SOLD SEPARAT

BALL - detent cap

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

18

D86558

SPRING

- return

1шт.

19

D86560

SCREW

PLUG - detent

2шт.

20

D86559

SEAT

- spring, lift spool

1шт.

21

D86557

WASHER

- lift spool

1шт.

22

N9506

COIL SPRING

SPRING - detent

2шт.

23

N9540

COVER

HOUSING - detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - detent spool

1шт.

25

H436436

PLATE

- orifice

1шт.

26

H673574

VALVE, PRESSURE RELI

VALVE ASSEMBLY - main relief, Includes: Ref. 26 - 31B

1шт.

H673570

SEAL PACKAGE

KIT - seal, Includes: Ref. 27 - 30

1шт.

H674535

GASKET KIT

Seal Kit, Incl 27 - 31B

1шт.

Part of seal kit P/N H673569.

1шт.

Part of seal kit P/N H674618.

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - relief valve, inner

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - relief valve, outer

1шт.

29

NSS

NOT SOLD SEPARAT

RING - backup, relief valve, inner

1шт.

30

NSS

NOT SOLD SEPARAT

RING - backup, relief valve, outer

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - valve body

4шт.

31a

H438228

NUT

3/8-24UNF; Not Illustrated

1шт.

31b

H438229

ADJUSTMENT SCREW

3/8-24UNF; Not Illustrated

1шт.

Part of seal kit P/N H673569.

1шт.

Part of seal kit P/N H674618.

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - power beyond plug

1шт.

Part of seal kit P/N H673569.

1шт.

Part of seal kit P/N H674618.

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - detent spool

1шт.

Part of seal kit P/N H673569.

1шт.

Part of seal kit P/N H674618.

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - load check plug

2шт.

Part of seal kit P/N H673569.

1шт.

Part of seal kit P/N H674618.

1шт.

H673569

KIT

- seal, Includes: P/N H673570 and Ref. 31 - 34, used with H673218 valve

1шт.

H674618

GASKET KIT

KIT - seal, Includes: P/N H673570 and Ref. 31 - 34, used with H674734 valve, order component parts

1шт.
