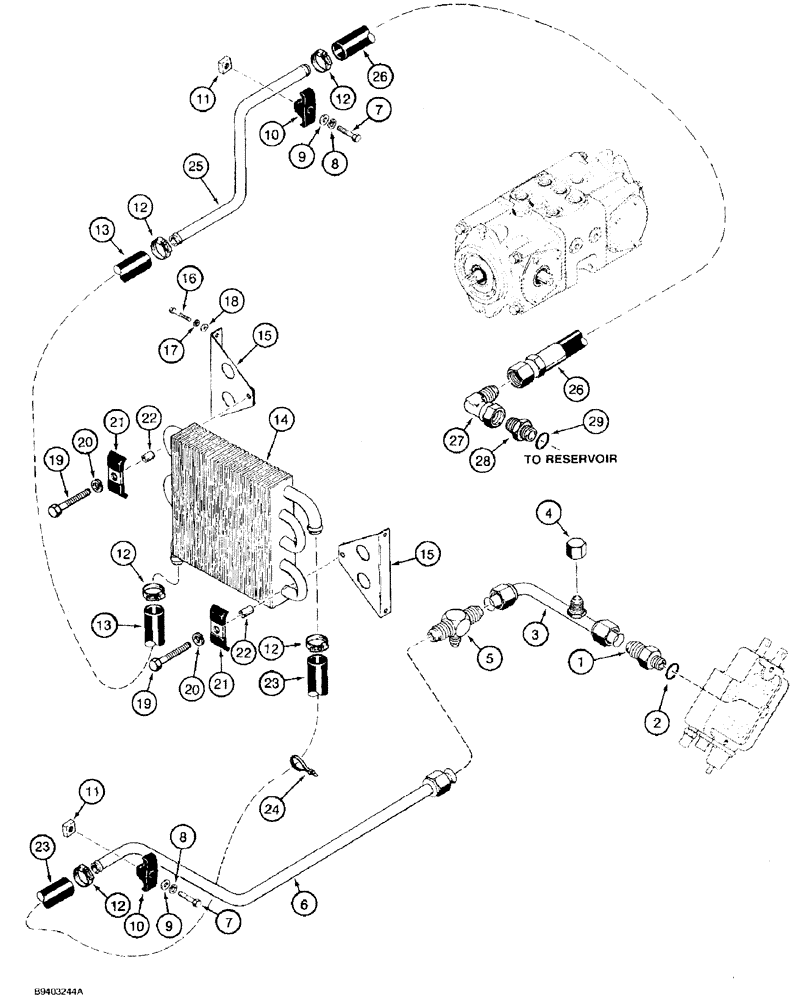

Запчасти Case 1825 (8-12) - HYDRAULIC OIL COOLER AND LINES, NORTH AMERICAN GASOLINE AND DIESEL MODELS (08) - HYDRAULICS

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

H674468

TUBE,19.05 mm OD x 225, 80 mm L

- loader control valve to tee

1шт.

4

218-756

CAP,37 Degree, 7/8"-14

1шт.

5

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x flare

1шт.

6

D138162

PIPE

TUBE - tee to oil cooler

1шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

10

D124301

CLAMP,3/4" ID

- tube

2шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

13

E20779

HOSE,19 mm ID x 400.00 mm, SAE 100R3, SAE J517C

Supply, to Lower Port of Oil Cooler, Cut from Bulk Hose, S118382X 19 mm ID x 400.00 mm, SAE 100R3, SAE J517C

1шт.

14

D57600

COOLER

- hydraulic oil

1шт.

15

H674175

BRACKET

- mounting, oil cooler

2шт.

New mounting kit (321452A1) improvement implemented at S/N JAF0157372 to stop rear door contact. See service bulletin NUN SB 002 99 for units prior to S/N JAF0157372.

1шт.

For new mounting, see NUN SB 012 95.

1шт.

16

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

4шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

H426767

WASHER

- flat, 1/4 inch, hardened, used on gasoline models

4шт.

19

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

D54416

CLAMP

- at cooler hoses

2шт.

For new mounting, see NUN SB 012 95.

1шт.

22

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- split, clamp

2шт.

23

229346A1

HOSE

- 3/4 (19) x 1-1/4 (32) x 43-3/8 inches long, from top port of oil cooler, cut from S118382 bulk hose, (Replaces D122104 to prevent rubbing against the weight mounting bolt)

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

D138165

PIPE

TUBE - intermediate, oil cooler hose to hydraulic reservoir

1шт.

26

D135471

HOSE

- 1000 mm long, from intermediate hose to hydraulic reservoir

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel flare

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

S118382X

LARGE HOSE

HOSE - bulk, 20 foot (6.09 m) long

1шт.
