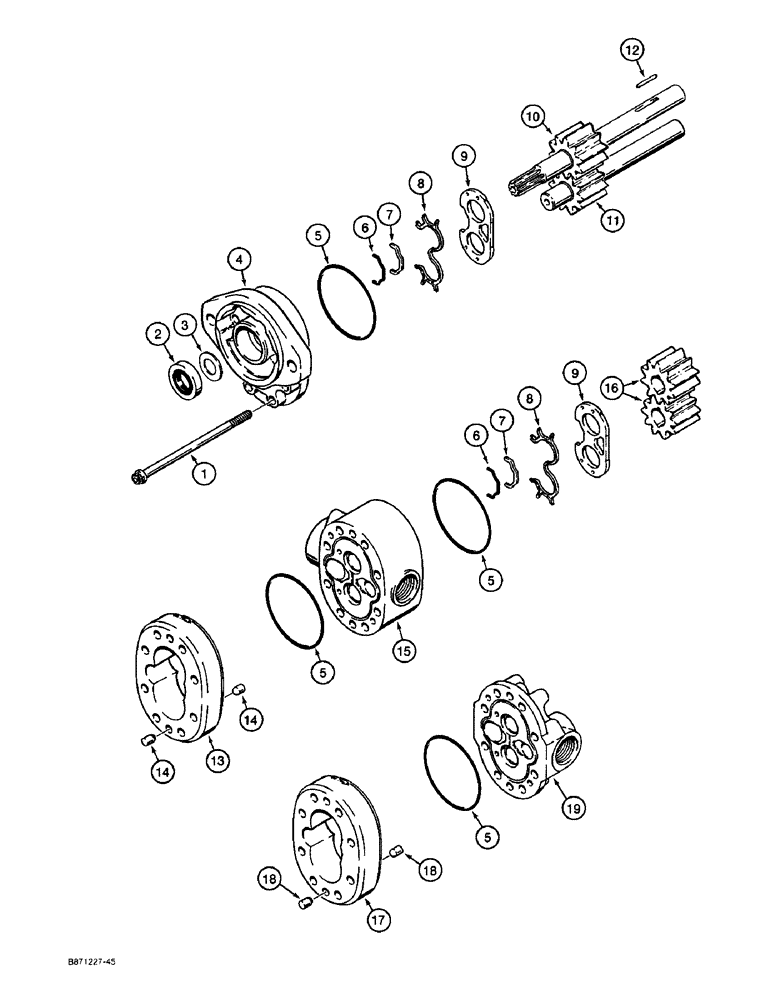

Запчасти Case 1825 (8-04) - HYDRAULIC EQUIPMENT PUMP D136150, PRIOR TO P.I.N. JAF0096590 (08) - HYDRAULICS

D136150

PUMP

ASSEMBLY - hydraulic, equipment, see Fig. 8-08 for mounting hardware, Includes: Ref. 1 - 19

1шт.

1

166-163

12 PT SCREW,Flg, 5/16" - 18 x 5", Gr 8

BOLT - 12 point, 5/16 NC x 5 inch, grade 8

8шт.

2

H83733

SEAL

- shaft

1шт.

Part of seal kit P/N N13954.

1шт.

3

N13135

WASHER

- special, shaft seal

1шт.

Part of seal kit P/N N13954.

1шт.

4

H435648

COVER

- pump, drive shaft end, was N14632

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Pump covers and center body, was H758599

4шт.

Part of seal kit P/N N13954.

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - molded

2шт.

Part of seal kit P/N N13954.

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - bearing

2шт.

Part of seal kit P/N N13954.

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - wear plate

2шт.

Part of seal kit P/N N13954.

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear, pump

2шт.

Part of seal kit P/N N13954.

1шт.

N14647

GEAR-SET

GEAR SET - matched, drive shaft end, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive, pump, includes shaft

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven, pump, includes shaft

1шт.

12

N13443

KEY

- drive gear shaft

1шт.

N13448

BODY

HOUSING ASSEMBLY - gear, drive shaft end, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

14

71120

VALVE

PIN - dowel, gear housing

4шт.

15

N14648

BODY

- center

1шт.

16

1960556C1

GEAR

- pump, port end

2шт.

17

N14649

BODY

HOUSING - gear, port end

1шт.

18

71120

VALVE

PIN - gear housing, port end

2шт.

19

N14650

COVER

- pump, port end

1шт.

N13954

SEAL KIT

- seal, Includes: Ref. 2, 3 and 5 - 9, also includes one A7982 O-ring and two H755975 O-rings not used in this application

1шт.
