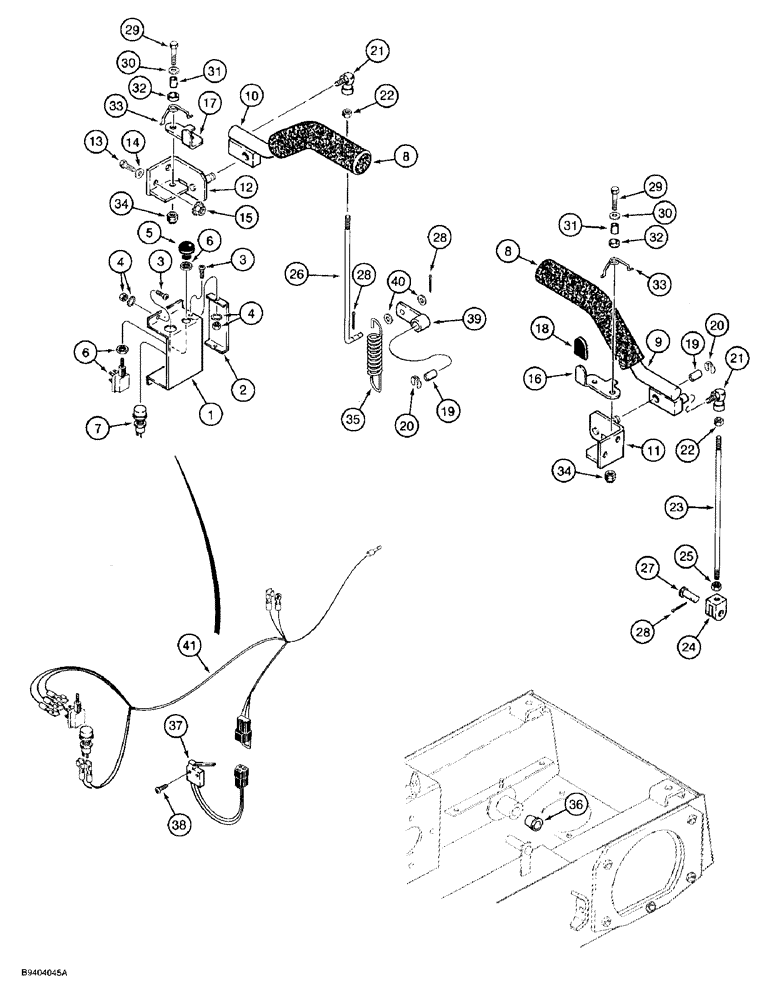

Запчасти Case 1825 (7-06) - SEAT BARS AND PARKING BRAKE CONTROL, EUROPEAN MODELS, P.I.N. JAF0140357 AND AFTER (07) - BRAKES

1

141128A1

HOSE

Bracket - brake switch and lamp mounting

1шт.

2

104823A1

COVER

- switch bracket

1шт.

3

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

- pan head cross slotted, No. 8-32 x 5/8 inch

4шт.

4

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

4шт.

5

141063A1

BUTTON

Knob, Parking Brake

1шт.

6

141100A1

IGNITION SWITCH

Switch, SPDT Push-Pull

1шт.

7

H603852

LIGHT

LAMP - warning, brake

1шт.

8

H436484

GRIP

COVER - seat bars

2шт.

9

H674177

BAR

- seat, right-hand

1шт.

10

H674176

BAR

- seat, left-hand

1шт.

11

H435879

BRACKET

- right-hand mounting

1шт.

12

H435880

BRACKET

- left-hand mounting

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

14

495-31038

WASHER,9.53mm ID x 18.64mm OD x 1.65mm Thk

- flat, 3/8 x 47/64 x 1/16 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

D131228

LATCH

- right-hand

1шт.

17

D131229

LATCH

- left-hand

1шт.

18

D134924

HANDLE

GRIP - vinyl, latch

2шт.

19

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

- seat bars

3шт.

20

D143415

SNAP RING,0.50” ID, Klipring

RING - retaining

3шт.

21

H169920

BALL JOINT

JOINT - ball, 1/4 inch NF

2шт.

22

425-114

NUT,1/4"-28, G5

2шт.

23

120237A1

ROD

- right-hand

1шт.

24

213-115

ADJUSTABLE CLEVIS,5/16" - 24

YOKE - rod, used with Ref. 16A

1шт.

25

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, Used with Ref. 16A

1шт.

26

137015A1

ROD

- left-hand

1шт.

27

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

28

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

3шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

31

H270777

SPACER

- at latch

2шт.

32

D44352

BUSHING

- at latch

2шт.

33

D134464

SPRING

- latch

2шт.

34

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

35

D127347

SPRING

- return

1шт.

36

353-20

PLUG

- plastic

2шт.

37

1343288C1

LIMIT SWITCH

SWITCH ASSEMBLY - brake

1шт.

38

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

39

137017A1

LEVER

ARM - brake actuating

1шт.

40

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

41

142701A1

HARNESS

- wiring, brake

1шт.
