Запчасти Case 1825 (6-24) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN

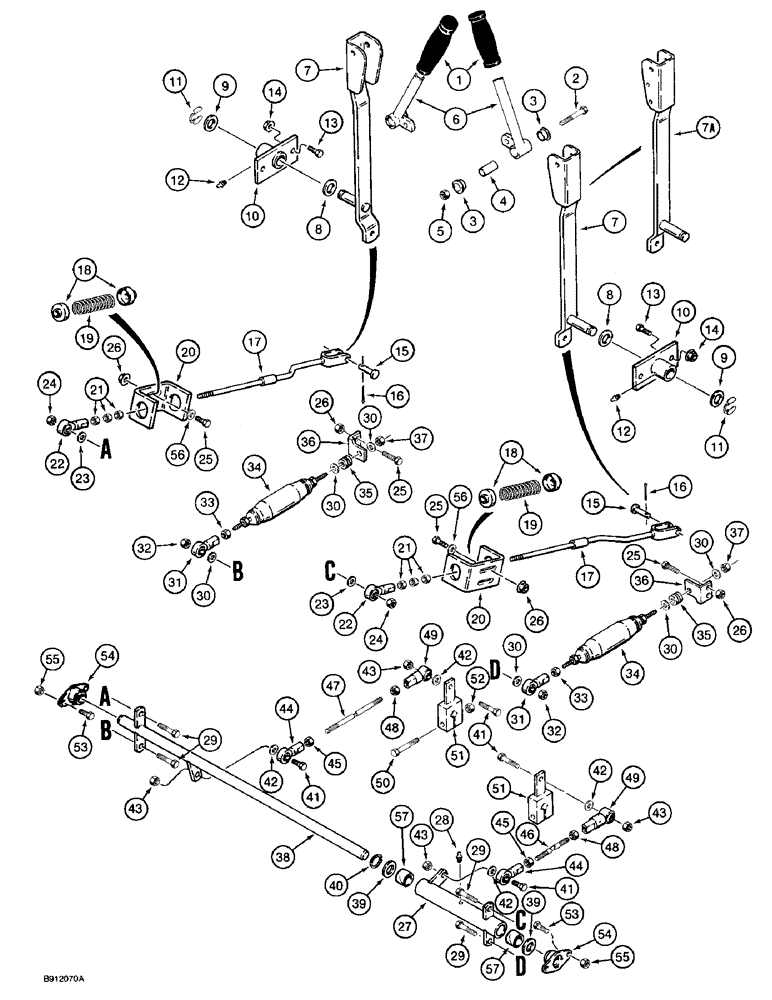

Схема запчастей Case 1825 - (6-24) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN
54
52
54
18
31
7
49
26
30
37
29
43
23
6
36
33
42
16
3
10
30
32
36
35
22
17
14
18
30
50
5
57
34
56
29
48
15
51
55
41
24
43
20
30
7
53
8
49
1
31
20
30
55
25
41
16
11
24
19
30
2
25
4
17
53
48
35
43
9
41
39
8
21
26
43
42
11
40
42
38
39
9
34
13
45
57
3
27
25
37
13
45
21
47
42
12
15
23
22
46
44
25
10
28
12
51
44
26
19
56
7a
33
32
26
29
14

Артикул

Название

Примечание

Количество

1

D128268

HANDLE

GRIP - control lever, see Fig. 4-26 for grip to be used models with horn

2шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

3

E20959

BUSHING

- control lever, was D123758

4шт.

4

D135135

SPACER

- control lever, order E20641 spacer, 231-4116 nut, and 413-632 bolt

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

D135154

HANDLE

LEVER - control, loader, for right-hand control lever used on models with a horn, see Fig. 4-26

2шт.

7

118309A1

LEVER

ARM - control lever, was D135161, Serial Range: -JAF0096608

2шт.

7a

118309A1

LEVER

ARM - control lever JAF0096608 to

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

2шт.

10

H674338

PIVOT ASSY.

BRACKET - pivot mounting

2шт.

REF # 10 - IF THE BRACKET HAS A NYLON BUSHING IN IT, REF # 57 PART NUMBER 72323 - NYLON BUSHING WILL WORK PER DEALER. JRB 3/6/97

1шт.

11

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER - bracket, was D95097

2шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

15

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

16

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

17

E99872

TIE-ROD

ROD - control, was D135221

2шт.

18

D63156

SPRING CUP

SEAT - spring

4шт.

19

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

- rod

2шт.

20

D137785

BRACKET

- spring retaining

2шт.

21

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

6шт.

22

A32398

BALL JOINT

JOINT - ball, 3/8 inch NF, was S108030

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

27

D135102

LEVER

BELLCRANK - shaft, was H674340

1шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

31

A32398

BALL JOINT

JOINT - ball, 3/8 inch NF, was D59922

2шт.

32

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

33

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

34

D66538

SHOCK ABSORBER

ABSORBER - shock, pump controls

2шт.

35

49566

GROMMET

- mounting bracket

2шт.

36

D135164

SUPPORT

BRACKET - mounting, shock absorber

2шт.

37

231-2446

NUT,3/8"-24, GB

NUT - light hex, self-locking 3/8 inch NF

2шт.

38

D135104

SHAFT

- mounting

1шт.

39

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

2шт.

40

R39773

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

41

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

43

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

44

232-4116

NUT,3/8"-16, GC

JOINT - ball, 3/8 inch NF, was S108030

2шт.

45

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

46

E99692

ROD

- control, right-hand, was D135213

1шт.

47

H437659

ROD

- control, left-hand, used on diesel models

1шт.

48

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

49

1283151C1

END ASSY.,3/8" - 24, LH Threads

JOINT - ball, 3/8 inch NF, was D135220

2шт.

50

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

51

H674293

LEVER

ARM - pump control

2шт.

52

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

53

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

54

D139039

BEARING ASSY,19mm ID

BEARING - cross shaft mounting

2шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

56

H426775

WASHER

- flat, hardened

4шт.

57

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- nylon, if used

2шт.

Выбрано товаров: 59
