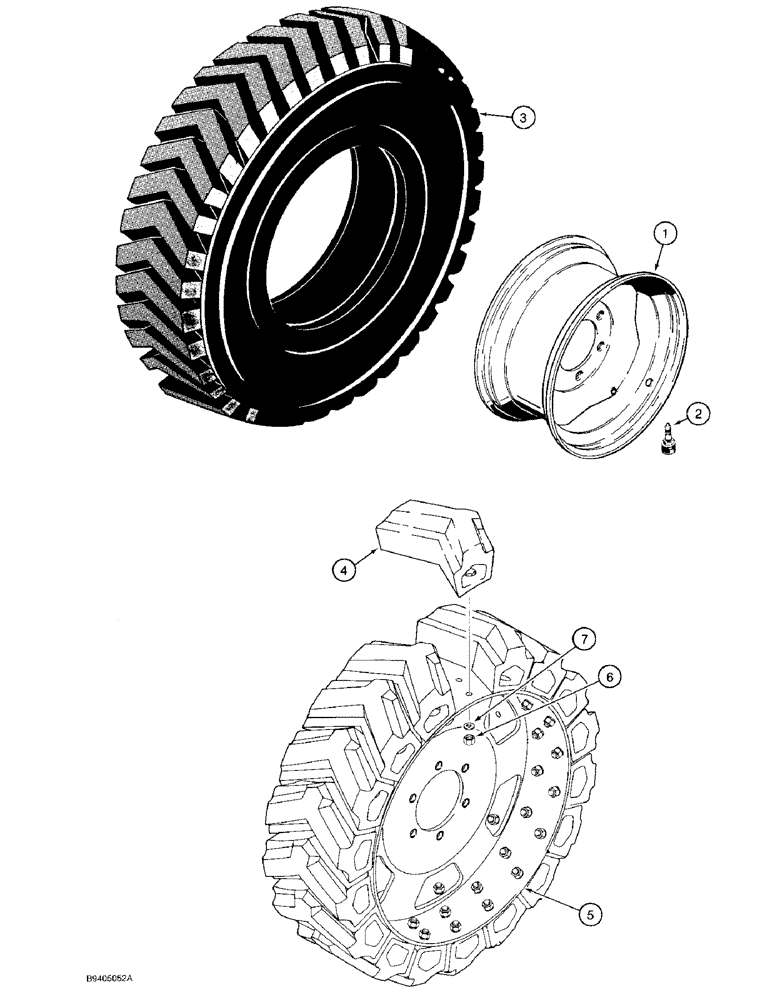

Запчасти Case 1825 (6-22) - WHEELS AND TIRES (06) - POWER TRAIN

1

H437812

RIM

WHEEL - rim, 8.50 x 15 inch tire

4шт.

1

H437811

RIM

WHEEL - rim, 5.70 x 15 inch tire

4шт.

2

T57461

VALVE STEM

STEM - valve, metal

4шт.

3

REF

INSTRUCTION

TIRE - 5.70 x 15 inch, Chevron tread, machinery item, order from Machinery Price List (North American Models)

4шт.

3

REF

INSTRUCTION

TIRE - 27-8.50 x 15 Flo traction tread, machinery item, order from Machinery Price List (North American Models)

4шт.

3

REF

INSTRUCTION

TIRE - 27-8.50 x 15, Omega, machinery item, order from Machinery Price List (European Models)

4шт.

3

REF

INSTRUCTION

TIRE - 27-8.50 x 15, Galaxy, machinery item, order from Machinery Price List (North American and European Models)

4шт.

141304A1

TYRE/TIRE

WHEEL - 27-8, 50 x 15, with solid rubber tire segments, machinery item, order from Machinery Price List (North American Models), Includes: Ref. 4 - 7

4шт.

175846A1

WHEEL

ASSEMBLY - right-hand, Includes: Ref. 4 - 7

2шт.

4

141306A1

TYRE/TIRE

SEGMENT - tire

20шт.

5

175848A1

RIM

- wheel, right-hand

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

80шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

80шт.

175847A1

WHEEL

ASSEMBLY - left-hand, Includes: Ref. 4 - 7

2шт.

4

141306A1

TYRE/TIRE

SEGMENT - tire

20шт.

5

175849A1

RIM

- wheel, left-hand

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

80шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

80шт.
