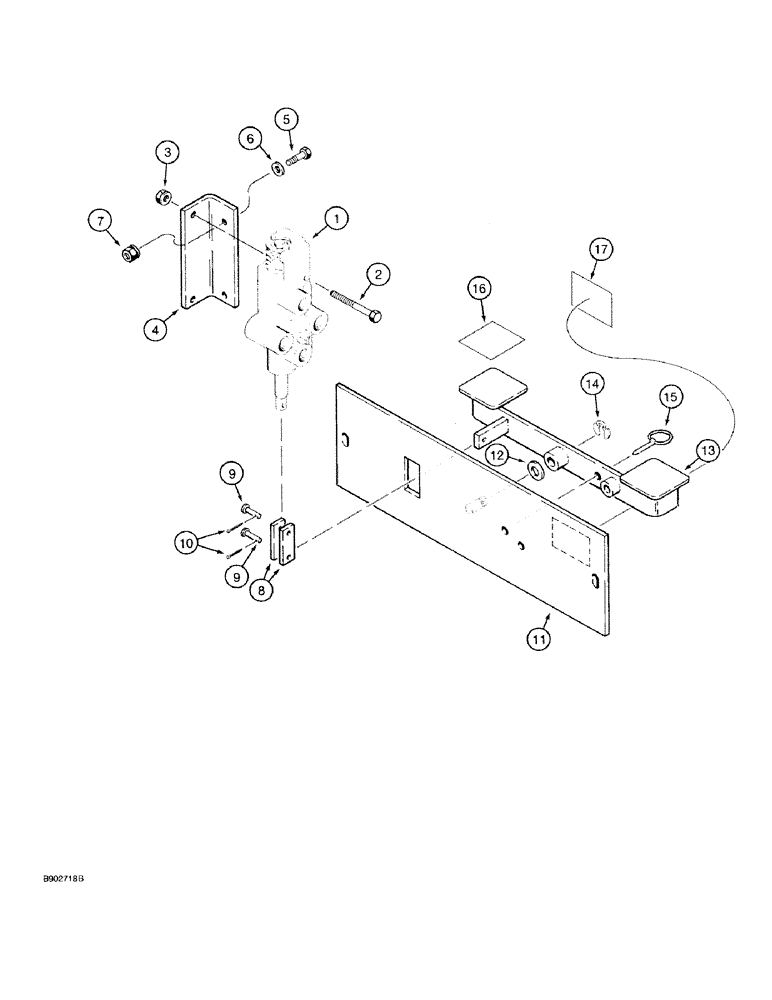

Запчасти Case 1818 (8-14) - AUXILIARY CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

D64670

VALVE

ASSEMBLY control, auxiliary, parts list Figure 8-16

1шт.

2

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC, if used

2шт.

4

H437917

BRACKET

valve mounting

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

2шт.

8

H437912

LEVER

LINK, Serial Range: valve-pedal

2шт.

9

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN clevis, 3/16 x 57/64 inch

2шт.

10

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

11

H674466

LARGE PLATE

PLATE pedal mounting

1шт.

12

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

13

H674467

PEDAL

control valve

1шт.

14

D143415

SNAP RING,0.50” ID, Klipring

RING retaining

1шт.

15

D94535

PIN,9.52mm OD

pedal mounting

1шт.

16

D55216

PAD,2" x 9"

PAD non slip, 2 x 9 inches

2шт.

17

140026A1

DECAL

auxiliary hydraulics

1шт.
