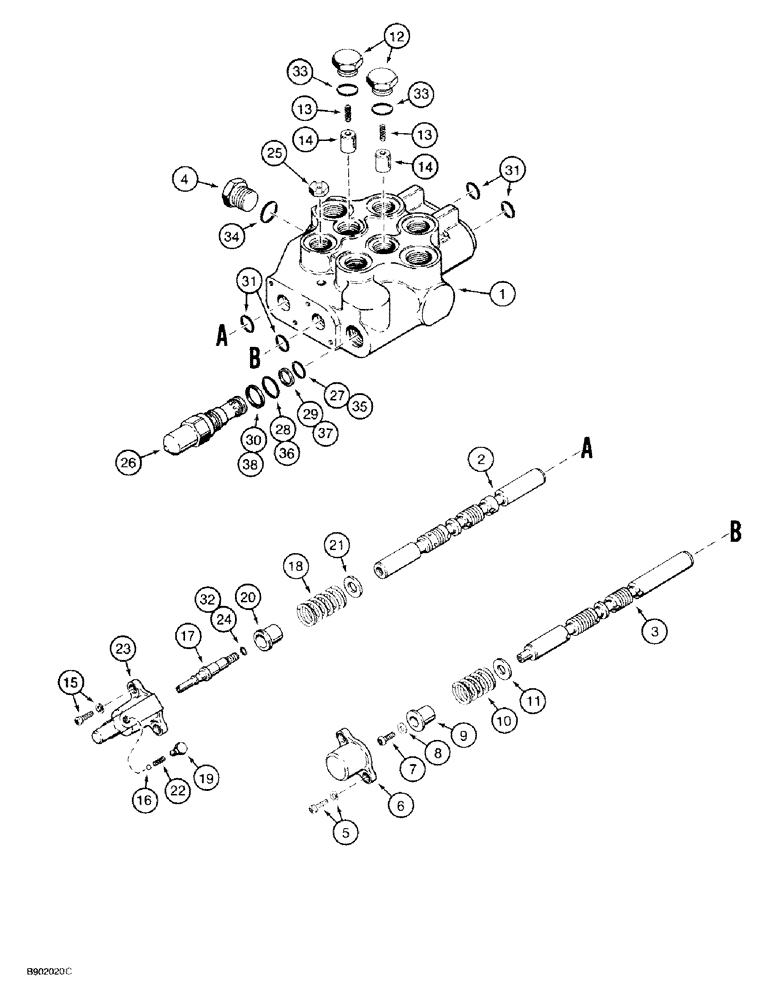

Запчасти Case 1818 (8-12) - LOADER CONTROL VALVE (08) - HYDRAULICS

H674709

VALVE

ASSEMBLY control, loader, Includes: Ref. 1-34, see Figure 8-18 for mounting hardware

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL loader lift

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL loader bucket

1шт.

4

H436435

PLUG

power beyond

1шт.

H673571

KIT

centering spring, Includes: Ref. 5-11

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW, includes lock washer, end cap

2шт.

6

N9528

CAP

bucket spool end

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW spring seat, bucket spool

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER spring seat, bucket spool

1шт.

9

N9529

SEAT

spring, bucket spool

1шт.

10

N9539

TENSION SPRING

SPRING centering, bucket spool

1шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

H673572

KIT

load check, Includes: Ref. 12-14

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H673573

KIT

detent float, Includes: Ref. 15-24

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW detent float, includes lock washer

2шт.

16

NSS

NOT SOLD SEPARAT

BALL detent cap

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

18

D86558

SPRING

return

1шт.

19

D86560

SCREW

PLUG detent

2шт.

20

D86559

SEAT

spring, lift spool

1шт.

21

D86557

WASHER

lift spool

1шт.

22

N9506

COIL SPRING

SPRING detent

2шт.

23

N9540

COVER

HOUSING detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

25

H436436

PLATE

orifice

1шт.

H674195

VALVE, CONTROL

VALVE ASSEMBLY main relief, Includes: Ref. 27 - 30, main relief valve below and P/N H673570

1шт.

26

H673574

VALVE, PRESSURE RELI

VALVE main relief; Incl 27 - 31B

1шт.

H673570

SEAL PACKAGE

KIT seal, Includes: Ref. 27-30

1шт.

H674535

GASKET KIT

Incl 27 - 31B

1шт.

Part of seal kit P/N H673569

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

28

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

29

H438044

GASKET

RING backup, relief valve, inner

1шт.

30

H438329

GASKET

RING backup, relief valve, outer

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING valve body

4шт.

31a

H438228

NUT

3/8-24UNF; Not Illustrated

1шт.

31b

H438229

ADJUSTMENT SCREW

3/8-24UNF; Not Illustrated

1шт.

Part of seal kit P/N H673569

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING power beyond plug

1шт.

Part of seal kit P/N H673569

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING detent spool

1шт.

Part of seal kit P/N H673569

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING load check plug

2шт.

Part of seal kit P/N H673569

1шт.

H673569

KIT

seal, Includes: Ref. 31-34, P/N H673570

1шт.
