Запчасти Case 1818 (8-10) - HYDROSTATIC DRIVE HYD CIRCUIT VARIABLE DISPLACEMENT PUMPS TO HYD OIL FILTER (08) - HYDRAULICS

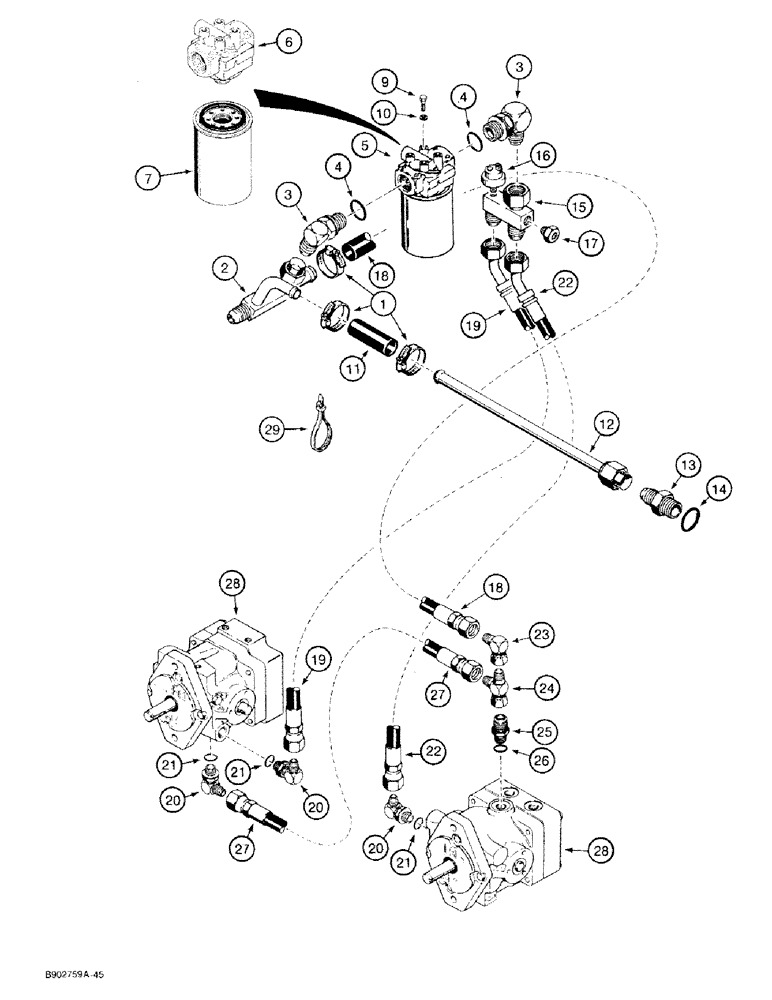

Схема запчастей Case 1818 - (8-10) - HYDROSTATIC DRIVE HYD CIRCUIT VARIABLE DISPLACEMENT PUMPS TO HYD OIL FILTER (08) - HYDRAULICS
1
12
24
5
20
6
29
27
21
7
2
21
4
11
18
20
28
13
14
27
15
19
22
16
9
25
22
4
19
21
3
23
18
3
26
10
28
20
17

Артикул

Название

Примечание

Количество

1

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

3шт.

2

D139395

MANIFOLD

at hydraulic filter

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 4

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

D139372

FILTER, ENGINE OIL

FILTER ASSEMBLY hydraulic oil, Includes: Ref. 6-8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY filter

1шт.

7

D126921

FILTER, ELEMENT

ELEMENT filter

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE bypass, not shown

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

D139443

HOSE

90 mm long, hydraulic oil filter to reservoir, cut from P/N S118382 bulk, see below

1шт.

12

D139396

PIPE

TUBE hydraulic oil filter to hydraulic reservoir

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

D139434

MANIFOLD

hydraulic oil filter to variable displacement pumps

1шт.

16

H433190

SWITCH

vacuum indicator

1шт.

17

221-844

PLUG,Hex Soc, 1/2"-14

hex socket, 1/2 inch PT

1шт.

18

D139446

HOSE

525 mm long, manifold to upper port of right-hand variable displacement pump, Serial Range: return-filter

1шт.

19

D139445

HOSE

550 mm long, left-hand variable displacement, Serial Range: pump-manifold

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 21

3шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

D139444

HOSE

775 mm long, manifold to side port of right-hand variable displacement pump

1шт.

23

218-5375

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 deg, 1-1/16-12 flare x 7/8-14 inch swivel flare

1шт.

24

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

3/4-16 fl branch x 7/8-14 inch flare x adj. str thread

1шт.

25

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

D57698

HOSE ASSY.

HOSE, 17 inch long, tee to left hand variable displacement pump

1шт.

28

D75993

PUMP

ASSEMBLY variable displacement, diesel models only, parts list Figure 6-14

2шт.

28

D136764

PUMP

ASSEMBLY variable displacement, gasoline models only, parts list Figure 6-14

2шт.

28

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

28

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, retaining

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

Выбрано товаров: 33
