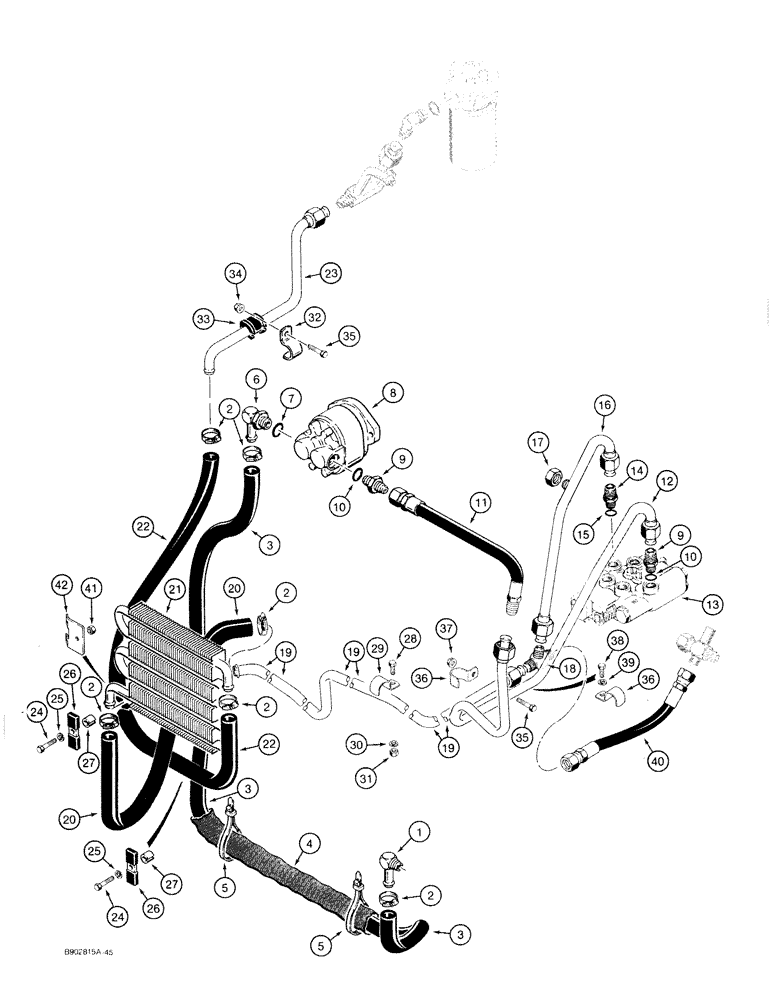

Запчасти Case 1818 (8-08) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT SUPPLY & RETURN LINES GASOLINE MODELS PRIOR TO P.I.N. JAF0095713 (08) - HYDRAULICS

1

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

90 degree, 3/4 inch stem end x PT

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

3

D136455

HOSE,19.05 mm ID x 1200.00 mm, SAE 100R3

Hydraulic Tank to Equipment Pump, Cut from P/N S118382 Bulk Hose, See Below 19.05 mm ID x 1200.00 mm, SAE 100R3

1шт.

4

D132054

SLEEVE

1-13/32 inch (36 mm) x 19-11/16 inch (500 mm), hose, at hydraulic tank, cut from P/N D134728 bulk sleeve, see below

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

6

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90 deg, 3/4 stem end x 1-1/16-12 inch adj. O-ring, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D136386

PUMP

ASSEMBLY equipment hydraulic, parts list Figure 8-9A

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

R43069

HOSE

419 mm long, hydraulic equipment pump to tube at loader control valve

1шт.

12

E20120

TUBE

loader control valve, was P/N D139055

1шт.

13

H674709

VALVE

ASSEMBLY control, loader, parts list Figure 8-6

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H674646

PIPE ASSY.,0.75" OD

TUBE at control valve

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.

18

218-596

TEE,1 1/16"-12 37 Degree

1-1/16-12 inch flare

1шт.

19

H674334

TUBE,0.75" OD

tee to hose at oil cooler

1шт.

20

D95238

HOSE

635 mm long, oil cooler inlet

1шт.

21

D57600

COOLER

hydraulic oil

1шт.

22

D95238

HOSE

635 mm long, oil cooler outlet, cut from P/N S118382 bulk hose, see below

1шт.

23

D139387

PIPE

TUBE from hose at oil, Serial Range: cooler-filter

1шт.

24

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

D54416

CLAMP

hydraulic oil cooler

2шт.

27

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

split, clamp, P/N D76212

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

29

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

32

H430900

CLAMP

tube

1шт.

33

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR clamp

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

36

38188

CLAMP

tube

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

38

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

D122142

HOSE

475 mm long, bleed off

1шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

42

H437258

BRACKET

oil cooler, use existing air cleaner mounting box hardware

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

D134728

TUBE

SLEEVE bulk, 1-13/32 inch (36 mm) x 28-17/32 inch (725 mm)

1шт.
