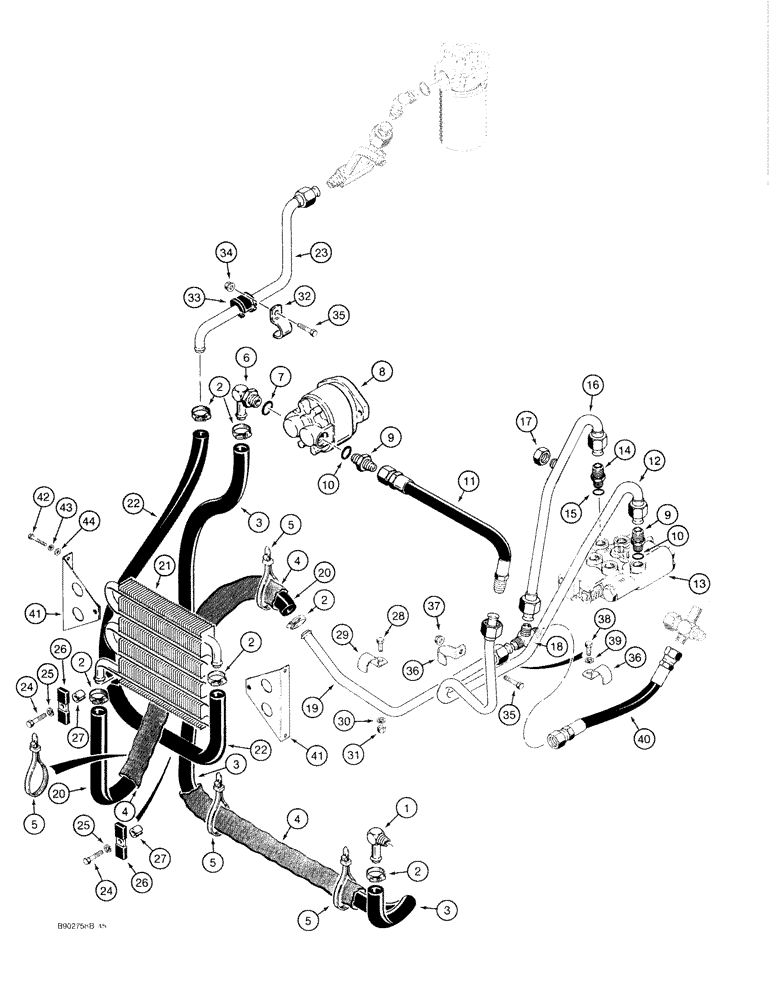

Запчасти Case 1818 (8-06) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT SUPPLY & RETURN LINES, DIESEL MODELS (08) - HYDRAULICS

1

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

90 degree, 3/4 inch stem end x PT

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

3

D136455

HOSE,19.05 mm ID x 1200.00 mm, SAE 100R3

Hydraulic Tank to Equipment Pump, Cut from P/N S118382 Bulk Hose, See Below 19.05 mm ID x 1200.00 mm, SAE 100R3

2шт.

4

D132054

SLEEVE

1-13/32 inch (36 mm) x 19-11/16 inch (500 mm), hose, at hydraulic tank and oil cooler inlet, cut from D134728 bulk sleeve, see below

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

6

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90 deg, 3/4 stem end x 1-1/16-12 inch adj. O-ring, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D134544

PUMP

ASSEMBLY equipment hydraulic, parts list Figure 8-23

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

R43069

HOSE

419 mm long, hydraulic equipment pump to tube at loader control valve

1шт.

12

E20120

TUBE

loader control valve, was P/N D139055

1шт.

13

H674709

VALVE

ASSEMBLY control, loader, parts list Figure 8-12

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H674646

PIPE ASSY.,0.75" OD

TUBE at control valve

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.

18

218-596

TEE,1 1/16"-12 37 Degree

1-1/16-12 inch flare

1шт.

19

D136612

PIPE

TUBE tee to hose at oil cooler

1шт.

20

D95238

HOSE

635 mm long, oil cooler inlet, cut from P/N S118382 bulk hose, see below

1шт.

21

D57600

COOLER

hydraulic oil

1шт.

22

D65488

HOSE,0.75" ID x 40.00"

Cut From P/N S118382 Bulk Hose, See Below 0.75" ID x 40.00"

1шт.

23

H674333

PIPE ASSY.,19.05 mm OD x 235, 334 mm L

TUBE from hose at oil cooler to filter

1шт.

24

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

D54416

CLAMP

hydraulic oil cooler

2шт.

27

D76212

BUSHING

SPACER split, clamp, was P/N D76212

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

29

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

32

H430900

CLAMP

tube

1шт.

33

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR clamp

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

36

38188

CLAMP

tube

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

1шт.

38

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

D122142

HOSE

475 mm long, bleed off

1шт.

41

H674175

BRACKET

mounting, oil cooler

2шт.

42

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

4шт.

43

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

44

H426767

WASHER

flat, hardened, 1/4 inch

4шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

D134728

TUBE

SLEEVE bulk, 1-13/32 inch, 36 mm x 28-17/32 inch, 725 mm

1шт.
