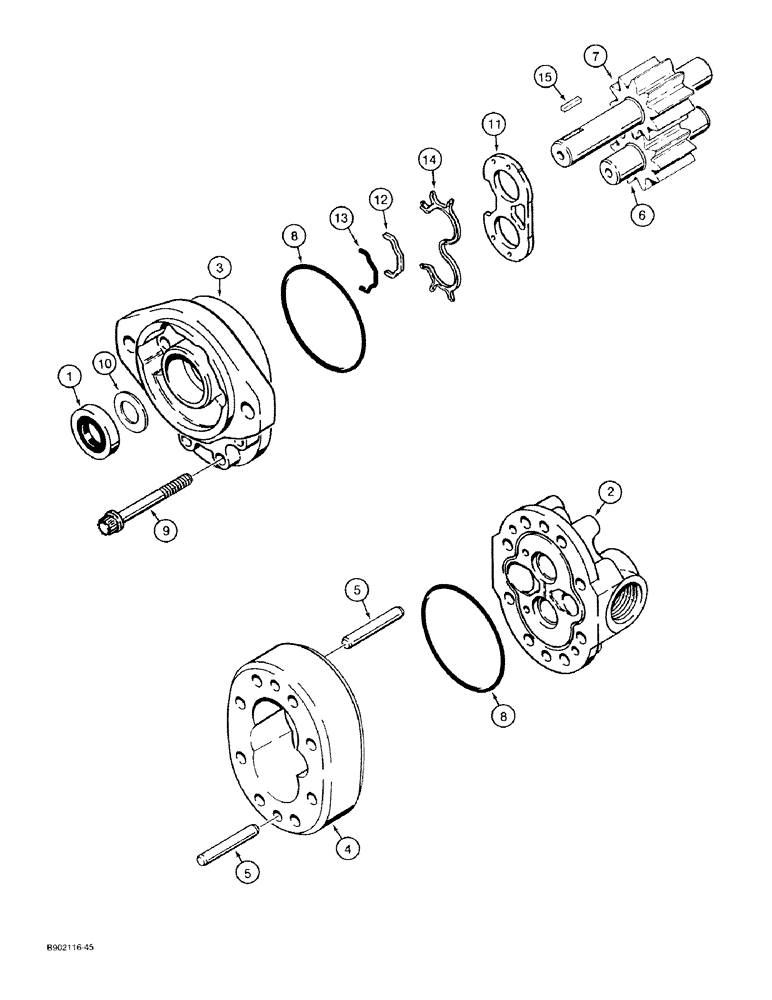

Запчасти Case 1818 (8-02) - EQUIPMENT HYDRAULIC PUMP, DIESEL MODELS (08) - HYDRAULICS

D134544

PUMP

ASSEMBLY hydraulic, equipment, Includes: Ref. 1-15, see Figure 6-2 for mounting hardware

1шт.

1

H83733

SEAL

shaft

1шт.

Part of repair kit P/N 1272638C2

1шт.

2

N14628

COVER

port end

1шт.

3

N14629

COVER

drive end

1шт.

N14630

HOUSING

ASSEMBLY gear, hydraulic pump, Includes: Ref. 4-5

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

5

71120

VALVE

PIN dowel, housing

2шт.

N14631

GEAR-SET

GEAR ASSEMBLY hydraulic pump, Includes: Ref. 6-7

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR driven, hydraulic pump

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR drive, hydraulic pump

1шт.

8

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Hydraulic pump, was P/N H758599

2шт.

Part of repair kit P/N 1272638C2

1шт.

9

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT ferry head, 5/16 NC x 2-1/4 inch, grade 8

8шт.

10

N13135

WASHER

special

1шт.

Part of repair kit P/N 1272638C2

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE wear, pump

1шт.

Part of repair kit P/N 1272638C2

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, seal

1шт.

Part of repair kit P/N 1272638C2

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL hydraulic pump

1шт.

Part of repair kit P/N 1272638C2

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER seal

1шт.

Part of repair kit P/N 1272638C2

1шт.

15

H415158

BUCKET TOOTH KEY

KEY square

1шт.

1272638C2

SEAL KIT

KIT repair, seal, Includes: Ref. 1, 8 & 10-14, was P/N N13136.

1шт.
