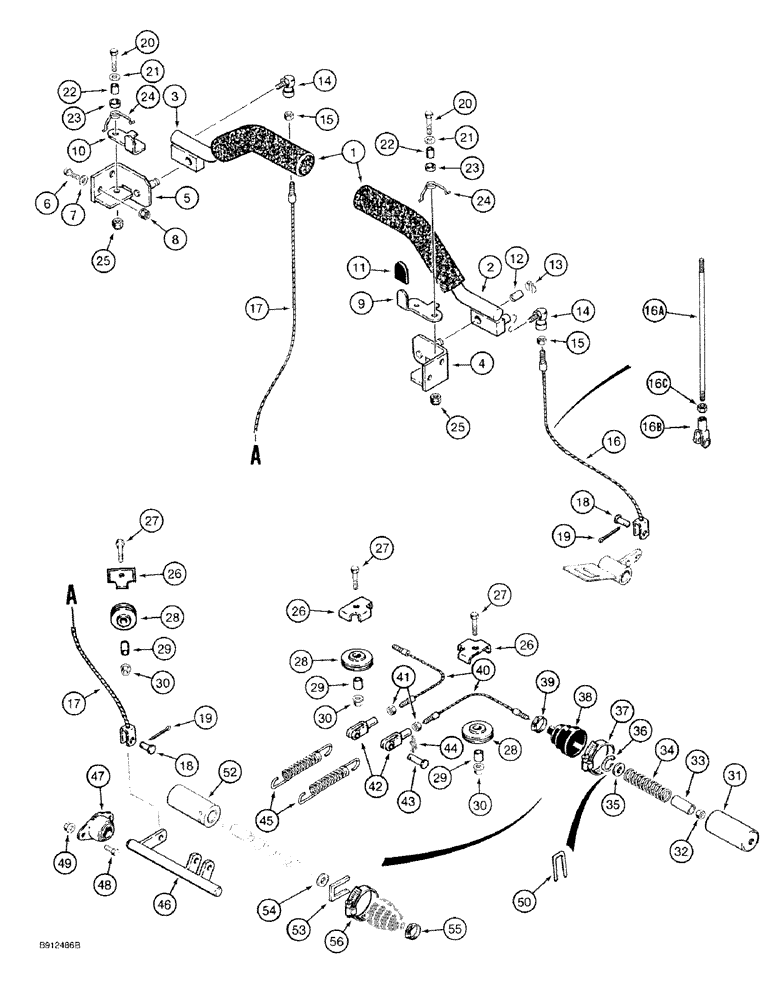

Запчасти Case 1818 (7-02) - PARKING LATCH AND SEAT BARS (07) - BRAKES

1

H437477

COVER

seat bars

2шт.

2

H674181

BAR

seat, right hand

1шт.

3

H674180

BAR

seat, left hand

1шт.

4

H435879

BRACKET

right hand mounting

1шт.

5

H435880

BRACKET

left hand mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

9

D131228

LATCH

right hand

1шт.

10

D131229

LATCH

left hand

1шт.

11

D134924

HANDLE

GRIP vinyl, latch

2шт.

12

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

seat bar

2шт.

13

D143415

SNAP RING,0.50” ID, Klipring

RING retaining

2шт.

14

H169920

BALL JOINT

JOINT ball, 1/4 inch NF

2шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 8-32.

1шт.

15

425-114

NUT,1/4"-28, G5

2шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 8-32.

1шт.

16

H438177

CABLE ASSY.

CABLE right hand, lock, no longer available, was P/N H438505, order 120925A1 Kit, Serial Range: -JAF0095593

1шт.

16a

120363A1

ROD

right hand, lock, Start Serial: JAF0095593

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 8-32.

1шт.

16b

213-115

ADJUSTABLE CLEVIS,5/16" - 24

YOKE rod

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 8-32.

1шт.

16c

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

Included with P/N 120925A1 Lock Plate Kit. Also see Figure 8-32.

1шт.

17

H438504

CABLE,670mm L

left hand, park

1шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN clevis, hardened, 5/16 x 15/16 inch

2шт.

19

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

22

H270777

SPACER

at latch

2шт.

23

D44352

BUSHING

at latch

2шт.

24

D134464

SPRING

latch

2шт.

25

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

26

D124466

RETAINER

cable

3шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

28

D124465

PULLEY,54mm OD

cable

3шт.

29

D95559

SPACER

cable pulley, P/N D95559

3шт.

30

231-5146

FLANGE NUT,3/8"-16

3шт.

32

425-144

JAM NUT,Jam, 1/4"-20, G5

hex, jam, 1/4 inch NC

2шт.

33

H435266

SPACER

lower cable spring

2шт.

34

D91040

SPRING

lower cable

2шт.

35

495-81108

WASHER,.281" x 1" x .109"

flat, hardened, 9/32 x 1 x 1/8 inch

2шт.

36

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100, Serial Range: -JAF0074683

1шт.

37

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

38

D70018

BOOT

rubber, seal

2шт.

39

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

40

H438506

CABLE

at center pulleys, lower

2шт.

41

425-114

NUT,1/4"-28, G5

2шт.

42

213-31

CLEVIS

1/4 inch

2шт.

43

427-4077

CLEVIS PIN,1/4" x .770"

PIN clevis, hardened, 1/4 x 43/64 inch

2шт.

44

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin

2шт.

45

D127347

SPRING

shaft

2шт.

46

H674537

SHAFT

parking brake

1шт.

47

D139039

BEARING ASSY,19mm ID

BEARING cross shaft mounting

2шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

49

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, flange, self locking, 5/16 inch NC

4шт.

50

H438614

CLIP

retaining, Start Serial: JAF0074683

2шт.

H675010

SET

KIT service, parking brake tube, includes instruction sheet, Includes: Ref. 52-56

1шт.

52

H674946

LATCH

TUBE brake

1шт.

53

H438614

CLIP

retaining

1шт.

54

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

55

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

56

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.
