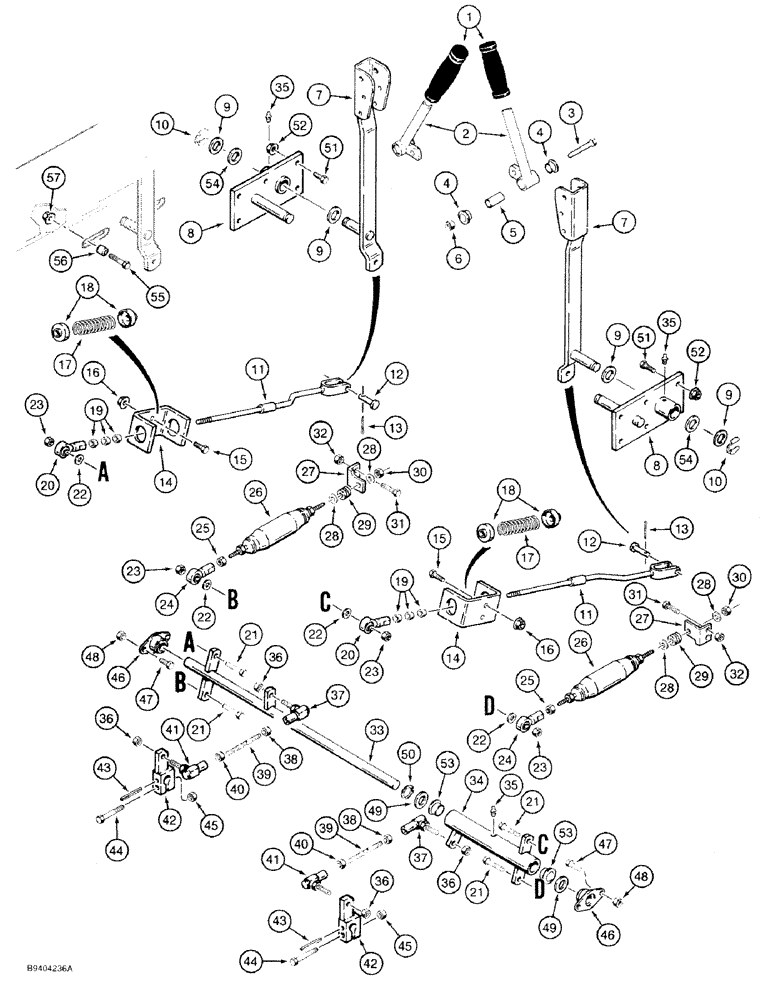

Запчасти Case 1818 (6-28) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
D128268
HANDLE
GRIP control lever, see Figure 4-28 for right hand grip to be used on models with a horn
2шт.
2
D135154
HANDLE
LEVER control, loader, see Figure 4-28 for right hand lever used on models with a horn
2шт.
3
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8 NC x 2 inch
2шт.
4
E20959
BUSHING
control lever was P/N D123758
4шт.
5
D135135
SPACER
control lever, for service on each side, order one each P/N E20641 spacer, P/N 231-4116 lock nut, and P/N 413-632 bolt
2шт.
6
230-4216
LOCK NUT,3/8"-16, GA
NUT hex, self locking, 3/8 inch NC
2шт.
7
118309A1
LEVER
ARM control lever, was P/N D135161
2шт.
8
H674344
SUPPORT
BRACKET bellcrank
2шт.
9
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER flat, spacer
4шт.
10
D143416
CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk
RETAINER arm to bracket, was P/N D95097
2шт.
11
E99866
ROD
control, was P/N D135133
2шт.
13
432-616
COTTER PIN,3/32" x 1"
3/32" x 1"
2шт.
14
D137785
BRACKET
spring retaining
2шт.
15
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16 NC x 3/4 inch
4шт.
16
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT hex, flange, self locking, 5/16 inch NC
4шт.
17
D70304
COMPRESSION SPRING,0.955" OD x 4.00" L
rod
2шт.
18
D63156
SPRING CUP
SEAT spring
4шт.
19
425-156
JAM NUT,Jam, 3/8"-24, G5
hex jam, 3/8 inch NF
6шт.
20
S108030
JOINT
ball, 3/8 inch NF
2шт.
21
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
hex, 3/8 NC x 1-1/4 inch
4шт.
22
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
flat, (13/32 x 13/16 x 1/16")
4шт.
23
232-4116
NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
4шт.
24
A32398
BALL JOINT
JOINT ball, 3/8 inch NF, was P/N D59922
2шт.
25
425-156
JAM NUT,Jam, 3/8"-24, G5
hex jam, 3/8 inch NF
2шт.
26
D66538
SHOCK ABSORBER
ABSORBER shock
2шт.
27
D135164
SUPPORT
BRACKET mounting, shock absorber
2шт.
28
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
flat, (13/32 x 13/16 x 1/16")
4шт.
29
49566
GROMMET
mounting bracket
2шт.
30
231-2446
NUT,3/8"-24, GB
NUT light hex, self locking, 3/8 inch NF
2шт.
31
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16 NC x 3/4 inch
4шт.
32
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT hex, flange, self locking, 5/16 inch NC
4шт.
33
D136222
SHAFT
mounting
1шт.
34
D136221
SLEEVE
BELLCRANK shaft, Replaces: P/N H674345
1шт.
35
219-86
LUBE NIPPLE,1/8" NPTF
FITTING grease, straight, self tap 1/8 PT x 5/8 inch
3шт.
36
231-2446
NUT,3/8"-24, GB
NUT light hex, self locking, 3/8 inch NF
4шт.
37
D121417
BALL JOINT,3/8" - 24 x 1-3/8"
JOINT ball, 3/8 inch, was P/N D38296
2шт.
38
425-156
JAM NUT,Jam, 3/8"-24, G5
hex jam, 3/8 inch NF
2шт.
39
E99690
ROD
pump control, P/N D136227
2шт.
40
129-289
JAM NUT,Jam, 3/8"-24, G5, LH
2шт.
41
D133522
BALL JOINT,3/8" - 24 x 1-3/8"
JOINT ball, 3/8 inch NF, P/N D136234
2шт.
42
D136223
LINK
ARM pump control
2шт.
43
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
2шт.
44
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
hex, 5/16 NC x 1-3/4 inch
2шт.
45
232-4115
LOCK NUT,5/16"-18, GC
NUT, LOCK, 5/16"-18, GC
2шт.
46
D139039
BEARING ASSY,19mm ID
BEARING shaft and bellcrank mounting
2шт.
47
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16 NC x 3/4 inch
4шт.
48
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT hex, flange, self locking, 5/16 inch NC
4шт.
49
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER flat, spacer
2шт.
50
R39773
SNAP RING,#75, Ext
Ring, Snap, #75, Ext
1шт.
51
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16 NC x 3/4 inch
6шт.
52
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT hex, flange, self locking, 5/16 inch NC
6шт.
53
72323
BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L
nylon, if used
2шт.
54
195-545
WASHER,3/4", SAE
flat, 13/16 x 1-15/32 x 1/8 inch
2шт.
55
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch
4шт.
56
D76208
SPACER
stop, straight tracking adjustment
4шт.
57
231-5146
FLANGE NUT,3/8"-16
4шт.
Выбрано товаров: 57
