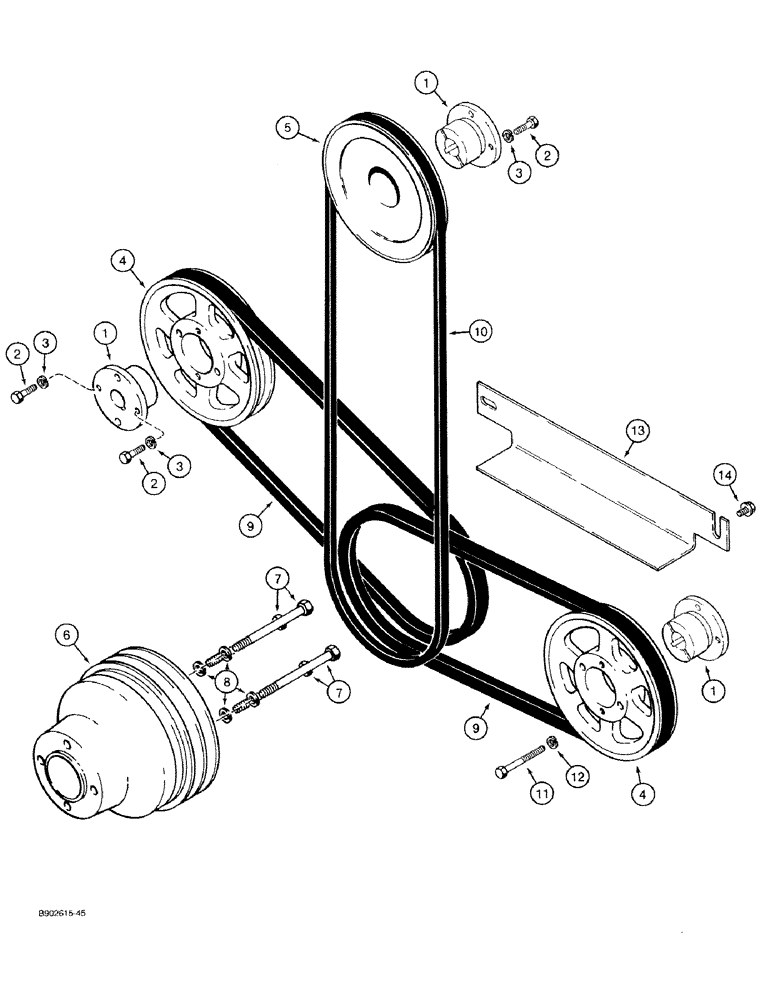

Запчасти Case 1818 (6-22) - SHEAVES AND DRIVE BELTS, GASOLINE MODELS (06) - POWER TRAIN

D120028

BUSHING

ASSEMBLY sheave, Includes: Ref. 1-3

3шт.

1

NSS

NOT SOLD SEPARAT

BUSHING sheave

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

D120024

PULLEY

SHEAVE variable displacement pumps

2шт.

5

H437091

PULLEY

SHEAVE hydrualic equipment pump

1шт.

6

H437090

SHEAVE

engine

1шт.

7

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

hex, 5/16 NC x 3-1/4 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

H438262

V-BELT,12.70 mm W x 844.30 mm L

Engine to Variable displacement Pumps 12.70 mm W x 844.30 mm L

2шт.

10

H437092

V-BELT,9.65 mm W x 1206.50 mm L

Engine to Hydraulic Equipment Pump 9.65 mm W x 1206.50 mm L

1шт.

11

113-79

BOLT

BOLT hex, 1/4 NC x 1-1/2 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

D122384

ANGLE

belt keeper

1шт.

14

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

self locking Hex Flg, 5/16"-18 x 1/2", Serr

2шт.
