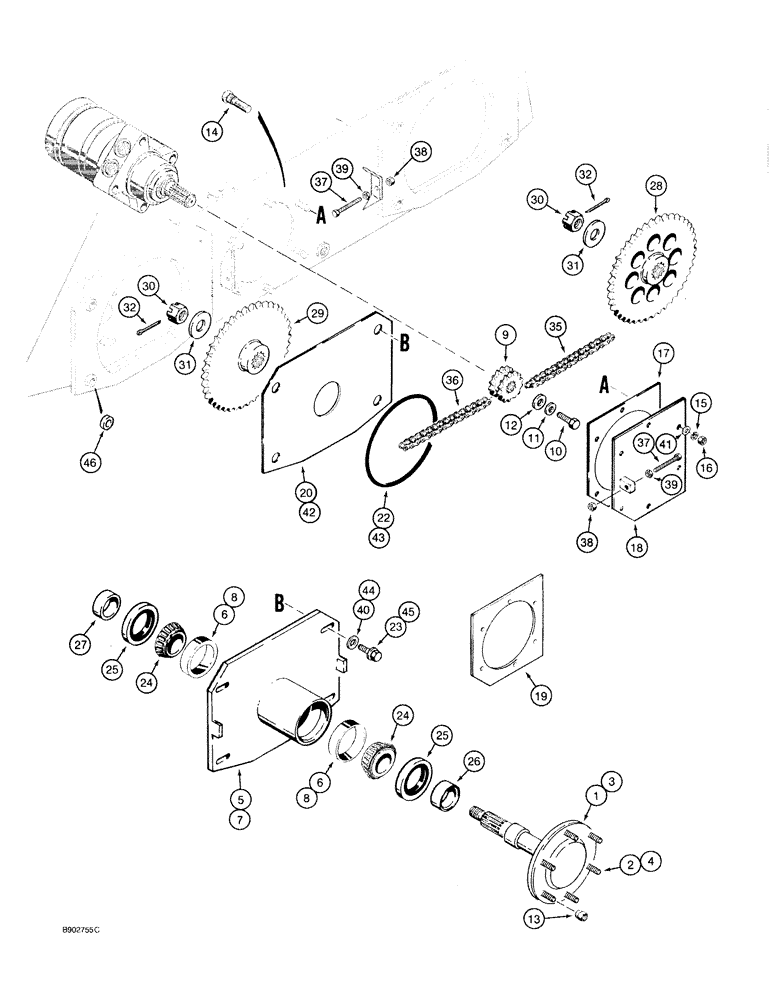

Запчасти Case 1818 (6-16) - AXLES AND DRIVE CHAINS, PRIOR TO P.I.N. JAF0095593 (06) - POWER TRAIN

D121412

AXLE

ASSEMBLY wheel, front, order Ref. 1 and 2, Includes: Ref. 1-2

2шт.

1

D134314

AXLE

wheel

1шт.

2

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

D121413

AXLE

ASSEMBLY wheel, rear, order Ref. 1 and 2, Includes: Ref. 3-4

2шт.

3

D134313

AXLE

wheel

1шт.

4

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

D122290

HUB

ASSEMBLY axle, front, Includes: Ref. 5-6

2шт.

5

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

6

130503H

BEARING CUP

CUP tapered roller bearing

2шт.

D122291

HUB,Assembly

ASSEMBLY axle, rear, Includes: Ref. 7-8

2шт.

7

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

8

130503H

BEARING CUP

CUP tapered roller bearing

2шт.

9

D76459

DRIVE SPROCKET

SPROCKET drive

2шт.

10

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

hex, 1/2 NF x 1 inch

2шт.

11

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

12

195-2051

WASHER,17/32" x 13/16" x .060"

flat, 17/32 x 1-1/8 x 1/8 inch

2шт.

13

F23214

WHEEL NUT

special, wheel

24шт.

14

H435895

BOLT

press in, special, was P/N D126607

12шт.

15

492-11038

LOCK WASHER,3/8"

12шт.

16

425-106

NUT,3/8"-16, Cl 5

12шт.

17

D137477

GASKET

plate

1шт.

18

H674085

LARGE PLATE

PLATE hydraulic motor, right hand

1шт.

19

D138562

PLATE

hydraulic motor, left hand

1шт.

20

H437288

LARGE PLATE

GASKET axle, steel

4шт.

22

238-5267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

Sprocket -267, 70 Duro, 8.234" ID x .139" Thk

4шт.

23

426-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

hex flange, 1/2 NC x 1-3/8 inch, grade 8

16шт.

24

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING tapered roller

8шт.

25

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

26

D122289

SPACER

axle, outer

4шт.

27

D134202

SPACER,44.5mm ID x 57.23mm OD x 16mm L

axle, inner

4шт.

28

D134203

DRIVE SPROCKET

SPROCKET axle, front

2шт.

29

D135527

DRIVE SPROCKET

SPROCKET axle, rear

2шт.

30

25-1314

SLOTTED NUT,7/8"-14, G5

NUT hex, slotted, 7/8 inch NF

4шт.

31

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

special, 0.1562 inch, 3.96 mm thick

4шт.

32

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

33

H437278

CHAIN (CE)

CHAIN ASSEMBLY endless, 60 pitch, left hand side of machine, front, not shown

1шт.

34

H437279

CHAIN (CE)

CHAIN ASSEMBLY endless, 68 pitch, left hand side of machine, rear, not shown

1шт.

35

D124615

CHAIN (CE)

CHAIN ASSEMBLY endless, 74 pitch, right hand side of machine, front

1шт.

36

H437281

CHAIN (CE)

CHAIN ASSEMBLY endless, 54 pitch, right hand side of machine, rear

1шт.

37

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

425-106

NUT,3/8"-16, Cl 5

4шт.

40

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

flat, 17/32 x 1-1/4 x 5/32 inch

16шт.

41

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

12шт.

123854A1

SET

KIT axle mounting modification, Includes: Ref. 42-46, this kit includes parts for two axles, this kit also contains other templates and parts not shown

1шт.

42

113706A1

LARGE PLATE

GASKET axle, steel

2шт.

43

238-5267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

Sprocket -267, 70 Duro, 8.234" ID x .139" Thk

2шт.

44

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

45

426-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

hex flange head, 1/2 NC x 1-3/8 inch, grade 8

2шт.

46

D44567

PLUG

NUT plug, axle, 1/2 NC

2шт.
