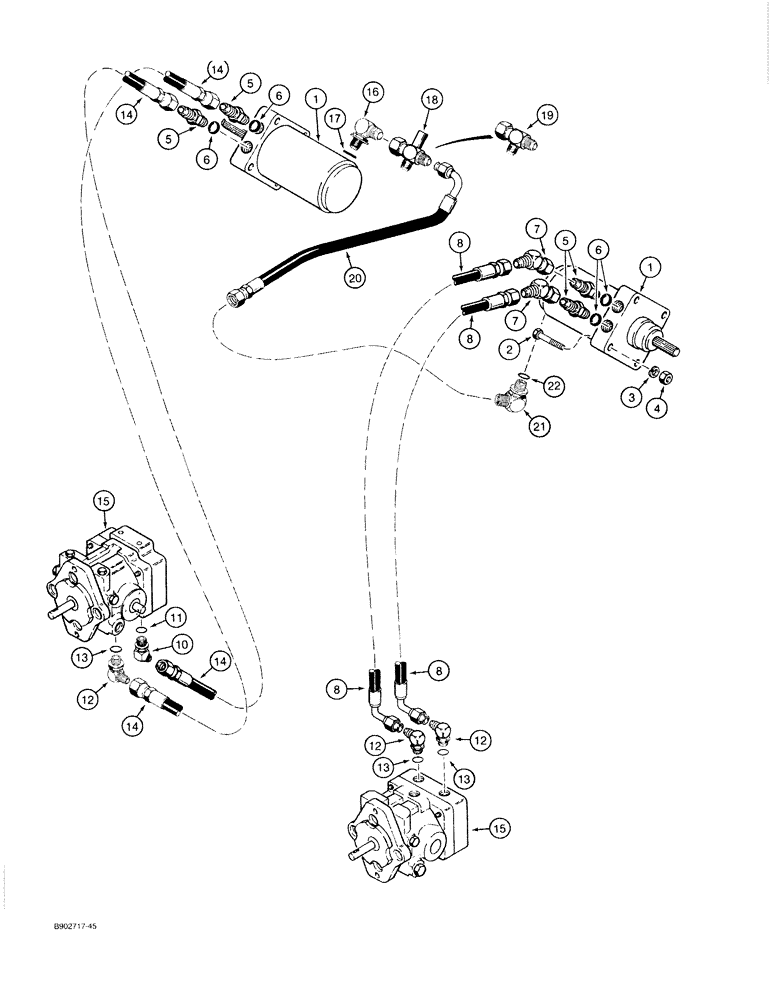

Запчасти Case 1818 (6-14) - HYDROSTATIC DRIVE HYD CIRCUIT VARIABLE DISPLACEMENT PUMPS TO HYDROSTATIC DRIVE MOTORS (06) - POWER TRAIN

1

D136681

MOTOR, HYDRAULIC

MOTOR ASSEMBLY hydrostatic drive, parts list Figure 6-12

2шт.

2

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT, 12 point, 1/2 NC x 2-1/2 inch, grade 8

8шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

4

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8

8шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 6

4шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

45 deg, 7/8-14 inch flare x swivel straight thread

2шт.

8

D122102

HOSE

right hand drive motor to right hand variable displacement pump, 450 mm long

2шт.

10

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 13

3шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

H437259

HOSE ASSY.

HOSE left hand drive motor to left-hand variable displacement pump, 400 mm long

2шт.

15

D75993

PUMP

ASSEMBLY variable displacement, diesel models only, parts list Figure 6-4

2шт.

15

D136764

PUMP

ASSEMBLY variable displacement, gasoline models only, parts list Figure 6-8

2шт.

15

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

15

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring, Includes: Ref. 17

1шт.

18

D121814

FITTING

MANIFOLD from left hand drive motor, diesel models only

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

3/4-16 inch flare branch x flare x adj straight thread, from left hand drive motor, gasoline models only

1шт.

20

D122141

HOSE

drain, left hand hydraulic motor, 500 mm long

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 22

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
