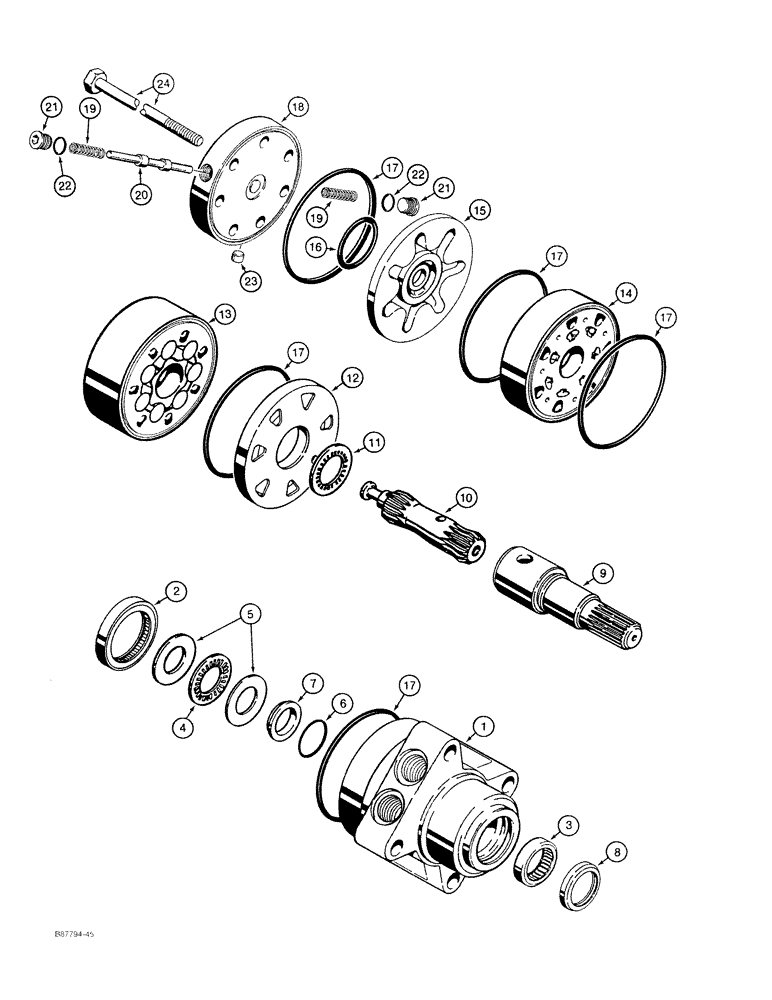

Запчасти Case 1818 (6-12) - HYDROSTATIC DRIVE MOTOR (06) - POWER TRAIN

D136681

MOTOR, HYDRAULIC

MOTOR ASSEMBLY hydrostatic drive, Includes: Ref. 1-24, P/N N14343 and N14351, see Figure 8-14 for mounting hardware

2шт.

N14343

HOUSING

ASSEMBLY motor, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

N14361

BEARING, NEEDLE,Needle, 54mm ID x 63.49mm OD x 12.7mm W

BEARING needle, large

1шт.

3

N14360

BEARING, NEEDLE,Needle, 35.61mm ID x 57.15mm OD x 17.91mm W

BEARING needle, small

1шт.

4

N14359

BEARING, THRUST,1.51" ID x 2.295" OD x 0.1562"

BEARING thrust, shaft

1шт.

5

N14358

BEARING WASHER,1.512" ID x 2.295" OD x 0.095"

WASHER thrust, bearing

2шт.

6

N14362

RING

backup, seal, housing

1шт.

7

N14363

SEAL,34.72mm ID x 42.42mm OD x 6.48mm Thk

housing

1шт.

8

N14357

SEAL,35.57mm ID x 57.3mm OD x 6.5mm Thk

shaft, outer

1шт.

9

N14443

SHAFT

coupling

1шт.

10

N14444

LINK

drive

1шт.

11

N14346

BEARING, THRUST,1.408" ID x 2.488" OD x 0.0945"

BEARING thrust, link

1шт.

12

N14347

PLATE

wear, was P/N N14445

1шт.

13

N14446

ROTOR

drive motor

1шт.

14

N14447

MANIFOLD

plate

1шт.

15

N14350

COMMUTATOR

includes center ring

1шт.

16

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

seal, small

1шт.

17

N14354

RING

seal, large

5шт.

N14351

COVER

ASSEMBLY end, Includes: Ref. 18-23

1шт.

18

NSS

NOT SOLD SEPARAT

COVER end

1шт.

19

N14364

SPRING

end cover

2шт.

20

N7783

VALVE

end cover

1шт.

21

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 22 Hex Soc, 7/16"-20 ORB

2шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.

23

NSS

NOT SOLD SEPARAT

ORIFICE end cover

1шт.

24

N14448

BOLT

special

7шт.
