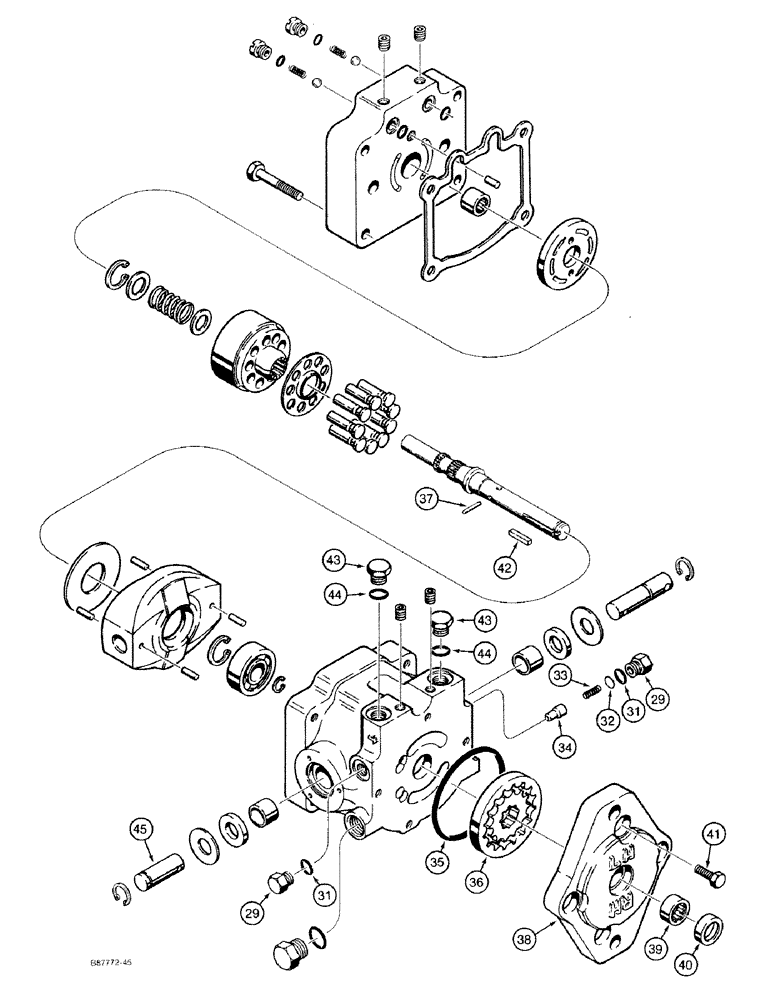

Запчасти Case 1818 (6-10) - VARIABLE DISPLACEMENT PUMP, GASOLINE MODELS (06) - POWER TRAIN

D136764

PUMP

ASSEMBLY variable displacement, continued from Figure 6-8, Includes: Ref. 29-45

1шт.

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

29

N7061

PLUG

charge relief valve

2шт.

32

D63406

SHIM

charge relief valve

1шт.

33

D63407

VALVE SPRING

SPRING charge relief valve

1шт.

34

D63413

CONE

POPPET charge relief valve

1шт.

H619858

KIT

charge pump, Includes: Ref. 35-41

1шт.

35

238-6153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 6, 90 Duro

Charge pump -153, 90 Duro, 3.487" ID x .103" Thk

1шт.

36

N7062

PLATE

GEROTOR charge pump, was P/N H657395

1шт.

37

N7060

AXLE PIN

PIN charge pump

1шт.

38

N7059

HOUSING

charge pump

1шт.

39

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

BEARING needle, charge pump

1шт.

40

H439172

SEAL

oil

1шт.

41

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

42

D65127

KEY

pump shaft

1шт.

43

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 44 Hex Hd, 9/16"-18 ORB

2шт.

45

D63408

SHAFT

trunnion

1шт.

31

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
